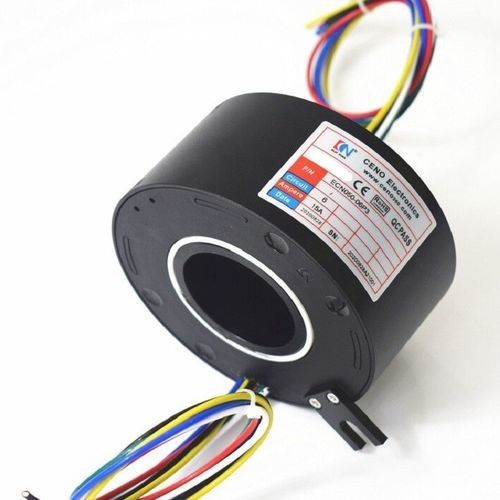

Hollow-shaft slip ring ECN050-06P3

for medical equipmentfor military applicationsfor industrial applications

We called through hole slip ring also as hollow shaft slip ring ,CENO can design this type with hole size from 3mm to 5000mm are optional.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings Features • - No package loss,no cross talk,low loss • - Low friction, long life,low torque, smooth rotation • - Anti-rotation tab for fixing stator side ,easy to install Applications • - Motion simulator • - Large engineering equipment • - Automation equipment Optional • - Through hole size • - Current rating • - Integrate various signal • - IP protection grade Rings - 6*15A Voltage - 0~380VDC Electrical noise - ≤70mΩ(50rpm) Dielectric strength - ≥1000V@50Hz Insulation resistance - ≥500MΩ@500VDC Operating speed - 0-300 rpm Contact material - Precious metal Housing material - Aluminium alloy IP protection grade - IP54 Through hole size - 50 mm
