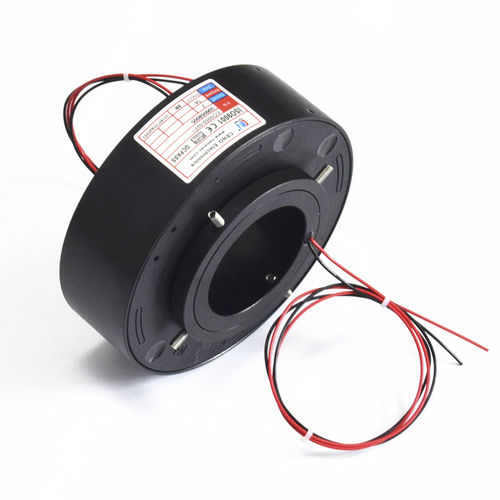

Electric slip ring ECN050-02P1hollow-shaftmetal380V AC/DC
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- hollow-shaft
- Material
- metal
- Other characteristics
- 380V AC/DC
- Voltage
380 V
- Primary current
5 A
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
2 unit
- Internal diameter
50 mm
(1.97 in)
Description
Slip ring is a general name for slip ring assembly which contains some combination of power, electrical signals, data, liquids and gases passed through the same rotating joint.Through bore slip rings are provided with a center hole to provide clearances for shafts, rotary joints, optics and other axial structures needed for the function of the rotating assembly.The standard hole size has different spec from 12.7mm ~ 100mm.
Electrical noise
-
≤30mΩ(50rpm)
Dielectric strength
≥1000V@50Hz
Isolation resistance
500MΩ@500VDC
Contact material
precious metal
Operating temperature
-20~+60℃
