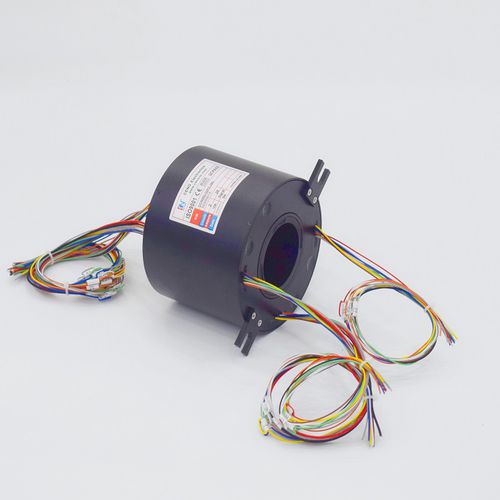

Through-hole slip ring ECN050-02P2-28Sindustrialaluminum alloyIP54
Add to favorites
Compare this product
Characteristics
- Construction
- through-hole
- Applications
- industrial
- Material
- aluminum alloy
- Other characteristics
- IP54, low-torque, cost-effective, 380V AC/DC
- Voltage
Max.: 380 V
Min.: 0 V
- Primary current
2 A, 10 A
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
30 unit
- Internal diameter
50 mm
(1.97 in)
Description
CENO has been devoted to providing high-quality solutions and units for various intelligent automation fields. The ECN050-02P2-28S is an economical through-hole slip ring for a variety of signals and current mixed transmission. The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.
Electrical noise
≤30mΩ(50rpm)
Dielectric strength
≥1000V@50Hz (power & signal)
Isolation resistance
-
≥500MΩ@500VDC (power & signal)
Contact material
Precious metal
Working temperature
-
-20°C~ +60°C
