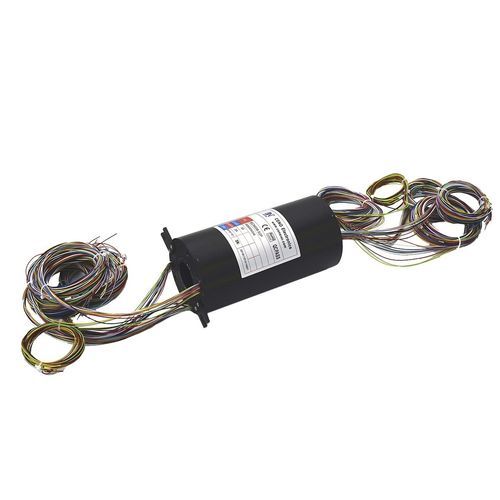

Electric slip ring ECN038-52Phybridthrough-holeindustrial
Add to favorites
Compare this product
Characteristics
- Type
- electric, hybrid
- Construction
- through-hole
- Applications
- industrial
- Material
- aluminum alloy
- Other characteristics
- with gold contacts, fiber brush, modular, conductive, electrical power supply, maintenance-free
- Voltage
Min.: 0 V
Max.: 240 V
- Primary current
2 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 250 rpm
(1,571 rad.min-1)- Number of channels
52 unit
- Internal diameter
38 mm
(1.5 in)
Description
CENO production of through-hole slip ring fully meets the 360-degree unrestricted rotation of power, control and digital signal hybrid transmission, the through-hole conductive slip ring adopts advanced fiber brush technology, maintenance-free, no lubrication, multi-point contact, low contact pressure and wear, low noise, long service life, standardized, modular design, complete product specifications, and tailor-made products for customers.
Electrical noise
-
≤30mΩ(50rpm)
Dielectric strength
-
≥1000V@50Hz
Isolation resistance
-
300MΩ@100VDC
Contact material
gold to gold
Operating temperature
-30~+40℃
