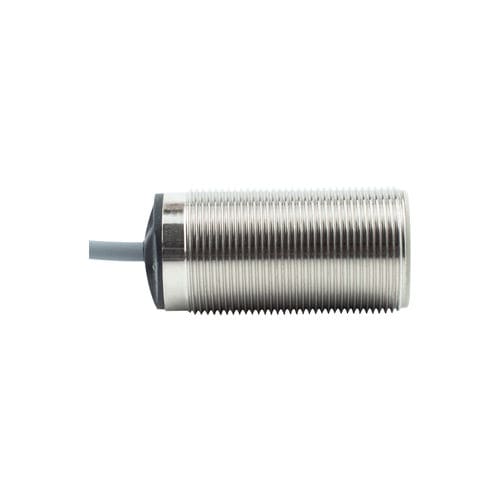

Inductive proximity sensor CL12-RF2DP1-ScylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- PNP, with switching function
- Supply voltage
- 24VDC, 12VDC
- Mounting
- flush
- Protection level
- heat/cold-resistant, IP67
- Other characteristics
- 3-wire
- Measuring range
Max.: 2 mm
(0.08 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
Technical specifications
Mechanical/electrical parameters
Applicable environment
Accessories
Characteristics / technical specifications
- Product type: Low-temperature
- Sensing distance: 2 mm
- Form factor: Cylindrical
- Sensing principle: Inductive
- Thread/size: M12
- Output: PNP, normally open (NO)
Technical specifications
- Product type: Low-temperature
- Sensing distance: 2 mm
- Form factor: Cylindrical
- Sensing principle: Inductive
- Thread/size: M12
- Cable length: 2 m
- Sensing direction: Front
- Operating frequency: 800 Hz
- Response time: 625 μs
- Detectable target: Metal
- Special requirement: Low-temperature resistant
- Accessories: Nuts x2, tooth lock washer x1, certificate
- Hysteresis: <10% of sensing distance
- Standard target: Fe 12×12×1 mm
- Temperature drift: Within ±15% across -40 to +80 °C compared to +23 °C
- Materials: Housing – nickel-plated brass; Sensing face – Teflon; Cable – PVC
Mechanical/electrical parameters
- Output: PNP NO
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Switching
- Operating mode: Normally open
- Mounting: Flush/embedded
- Current consumption: <15 mA
- Indicator: Yellow output LED
- Protection circuits: Short-circuit and surge protection
- Voltage influence: ±15% supply → ≤±1% sensing distance change
- Load current: <100 mA
- Insulation resistance: >50 MΩ (DC 500 V)
- Shock resistance: 500 m/s, 3 times in X, Y, Z
- Withstand voltage: AC 1000 V 50/60 Hz 1 min
- Vibration: 10–55 Hz double amplitude 1.5 mm, X/Y/Z 2 h
- Weight: 65 g
Applicable environment
- Operating temperature: -40 to +80 °C
Accessories
- Nuts x2
- Tooth lock washer x1
- Certificate
Characteristics / technical specifications
- Model: CL12-RF2DP1/S
- Series: CL12 series proximity sensors
- Sensing distance: 2 mm
- Sensing principle: Inductive
- Thread/shape: M12 cylindrical
- Output: PNP, normally open (NO)
- Operating voltage: DC 12–24 V
- Protection rating: IP67
- Cable length: 2 m (molded cable)
- Operating frequency: 800 Hz
- Response time: 625 μs
- Weight: 65 g
- Operating temperature: -40 to +80 °C
- Accessories: Nuts x2, tooth lock washer x1, certificate
