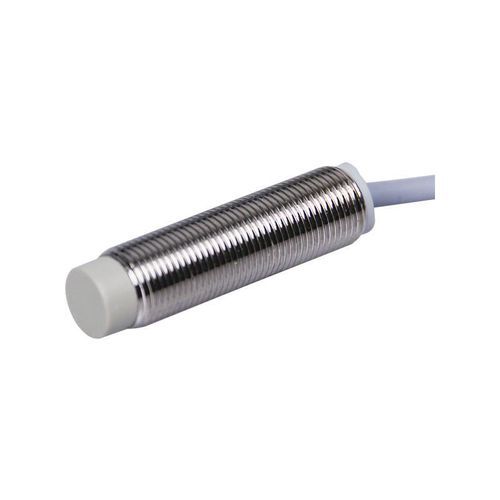

Inductive proximity sensor CL12-RN4DN1/ScylindricalM12NPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- NPN
- Mounting
- non-flush
- Material
- PVC, PTFE
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
0.4 cm
(0.16 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
Key specifications
Mechanical / Electrical parameters
Operating environment
Accessories
- Series: CL12 inductive proximity sensors
- Variant: low-temperature resistant
- Detection distance: 4 mm
- Housing: M12 cylindrical
- Sensing principle: inductive
- Output: NPN normally open (NO)
Key specifications
- Model: CL12-RN4DN1/S
- Cable length: 2 m (moulded cable)
- Detection direction: front
- Response frequency: 500 Hz
- Response time: 1 ms
- Target: metallic objects (standard test piece: Fe 12×12×1 mm)
- Hysteresis: <10% of detection distance
- Temperature drift: within ±15% over -40 to +80 °C (reference +23 °C)
- Materials: housing brass nickel-plated; sensing face PTFE (Teflon); cable PVC
Mechanical / Electrical parameters
- Supply voltage: DC 12–24 V (3-wire DC)
- Current consumption: ≤15 mA
- Output type: NPN NO
- Load current: ≤100 mA
- Protection: short-circuit protection and power surge protection
- Indicator: yellow output LED
- Ingress protection: IP67
- Connection: moulded cable
- Signal type: discrete switching
- Operating mode: normally open
- Mounting: non-flush (non-embeddable)
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Dielectric strength: AC 1000 V 50/60 Hz for 1 min (live parts to housing)
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z directions, 2 h
- Weight: 65 g
Operating environment
- Operating temperature: -40 to +80 °C
Accessories
- Nuts ×2, serrated washer ×1, conformity certificate
