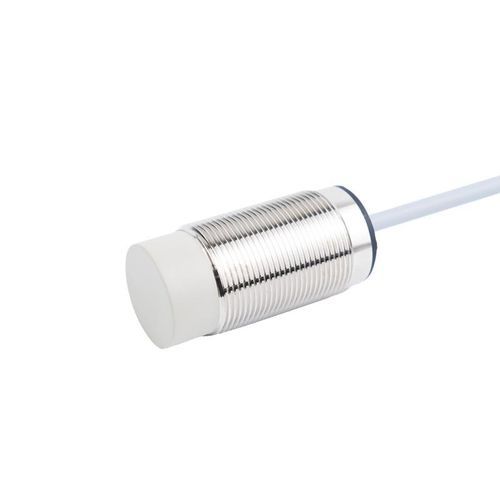

Inductive proximity sensor CL30-RF10DL1/ScylindricalM30with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, 2-wire
- Electrical connection
- bare wires
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Measuring range
1 cm
(0.39 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product name
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Features / Technical data
- Series: CL30 inductive proximity sensors · Model: CL30-RF10DL1/S
- Brand: 长江传感
Overview
- Type: Low-temperature version
- Sensing distance: 10 mm
- Housing: Cylindrical, M30
- Detection principle: Inductive (for metal targets)
- Output: DC 2-wire, normally open (NO)
Technical specifications
- Cable length: 2 m (molded cable)
- Detection direction: Front
- Response frequency: 800 Hz
- Response time: 625 μs
- Detectable objects: Metal
- Special feature: Low-temperature resistant
- Accessories: Certificate of conformity
- Hysteresis: Less than 10% of sensing distance
- Standard test piece: Iron 30×30×1 mm
- Temperature drift: Within ±15% across -40 to +80 °C referenced to +23 °C
- Materials: Housing – nickel-plated brass; sensing face – PTFE; cable – PVC
- Weight: 160 g
Mechanical / Electrical parameters
- Output type: DC 2-wire NO
- Supply voltage: DC 12–24 V
- Power supply method: Two-wire DC
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Switching
- Operating mode: Normally open
- Mounting: Flush (embedded)
- Indicator: Yellow output indicator
- Residual voltage: Below 3 V (non-polarity below 5 V) at 100 mA load, 2 m cable
- Voltage influence: Within ±1% detection distance change for ±15% supply variation
- Load current: Rated for 100 mA (with 2 m cable)
- Insulation resistance: >50 MΩ (DC 500 V) between live parts and housing
- Switching capacity: <100 mA
- Leakage current: <0.8 mA
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, X/Y/Z directions, 2 h
Operating environment
- Operating temperature: -40 to +80 °C
Features / Technical data
- Model: CL30-RF10DL1/S
- Series: CL30 inductive proximity sensors
- Sensing distance: 10 mm
- Housing size: M30
- Detection principle: Inductive (metal targets)
- Output: DC 2-wire normally open (NO)
- Supply voltage: DC 12–24 V
- Protection rating: IP67
- Cable length: 2 m (molded)
- Response frequency / time: 800 Hz / 625 μs
- Operating temperature: -40 to +80 °C
- Materials: Nickel-plated brass housing, PTFE sensing face, PVC cable
- Weight: 160 g
