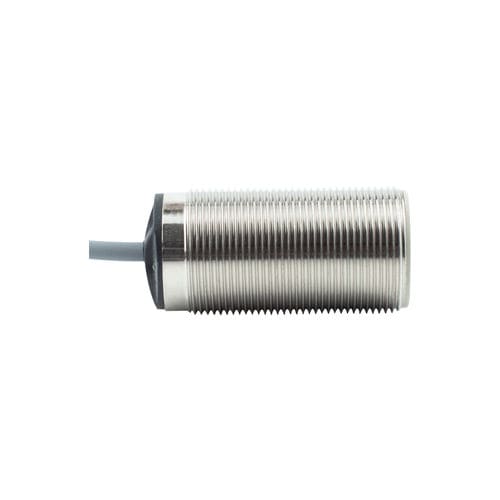

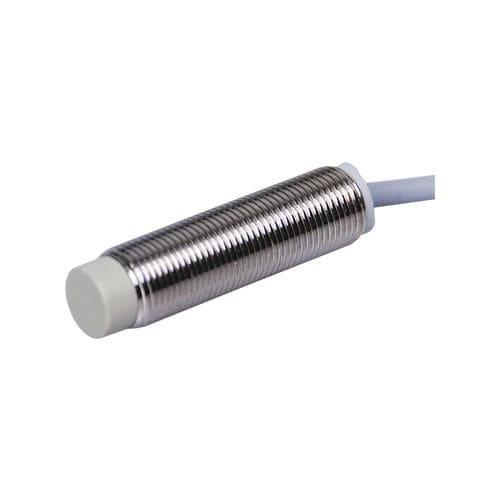

Inductive proximity sensor CL12-RN4DP1-S
cylindricalM12with switching function

Inductive proximity sensor - CL12-RN4DP1-S - CHANKO SENSOR - cylindrical / M12 / with switching function
Inductive proximity sensor - CL12-RN4DP1-S - CHANKO SENSOR - cylindrical / M12 / with switching function
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Characteristics

Technology
inductive
Shape
cylindrical
Diameter
M12
Output signal
PNP, with switching function
Electrical connection
bare wires
Supply voltage
24VDC, 12VDC
Mounting
non-flush
Protection level
IP67
Other characteristics
3-wire
Measuring range

Max.: 4 mm
(0.16 in)

Min.: 0 mm
(0 in)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

Product overview
  • Type: low-temperature inductive proximity sensor
  • Model: CL12-RN4DP1/S
  • Detection distance: 4 mm
  • Housing: cylindrical M12
  • Detection principle: inductive
  • Output: PNP normally open (NO)
  • Connection: molded 2 m cable


Technical specifications
  • Standard test object: iron 12 × 12 × 1 mm
  • Hysteresis: < 10% of sensing distance
  • Temperature drift: within ±15% of sensing distance over -40 to +80 °C relative to +23 °C
  • Response frequency: 500 Hz
  • Response time: 1 ms
  • Detectable target: metal
  • Detection direction: frontal


Mechanical / electrical parameters
  • Supply voltage: DC 12–24 V
  • Wiring: three-wire DC
  • Current consumption: < 15 mA
  • Output type: PNP NO (switching)
  • Load current: < 100 mA
  • Indicator: yellow output LED
  • Protection: short-circuit protection, power surge protection
  • Voltage influence: < ±1% change in sensing distance for ±15% supply variation
  • Insulation resistance: ≥ 50 MΩ (DC 500 V)
  • Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
  • Shock resistance: 500 m/s², 3 shocks each in X, Y, Z
  • Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h each in X, Y, Z
  • Operating mode: normally open
  • Mounting: non-embeddable (non-flush)
  • Protection rating: IP67
  • Weight: 65 g


Operating environment
  • Ambient temperature: -40 to +80 °C


Accessories and test standard
  • Included accessories: nuts ×2, internal tooth washer ×1, conformity certificate
  • Standard test object: iron plate 12 × 12 × 1 mm
