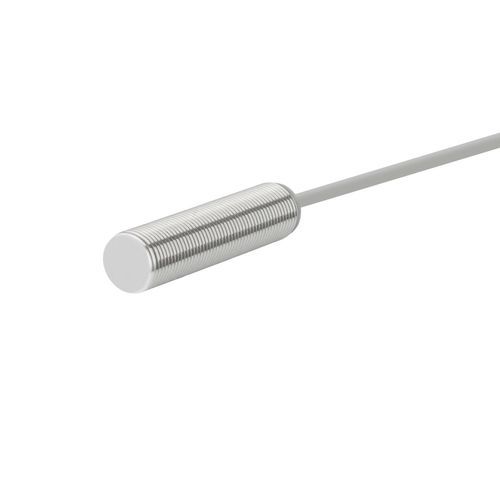

Inductive proximity sensor CL12-RF2AK1/ScylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, 2-wire
- Supply voltage
- AC, 24VAC, 220VAC
- Mounting
- flush
- Material
- brass, PVC, PTFE
- Applications
- industrial
- Measuring range
0.2 cm
(0.08 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product
Technical specifications
Mechanical / Electrical parameters
Operating environment
Recommended applications
Features / specifications
- Type: Low-temperature inductive proximity sensor
- Model: CL12-RF2AK1/S
- Detection distance: 2 mm
- Housing: M12 cylindrical
- Output: AC 2-wire, normally open (NO)
- Manufacturer: 长江传感
Technical specifications
- Cable length: 2 m (molded cable)
- Detection direction: frontal
- Response frequency: 25 Hz
- Response time: 20 ms
- Detectable target: metal
- Special feature: low-temperature rated
- Hysteresis: <10% of sensing distance
- Standard test object: Fe 12×12×1 mm
- Temperature drift: within ±15% across -40 to +80 °C relative to +23 °C
- Materials: housing brass nickel-plated; sensing face Teflon; cable PVC
- Accessories: nuts ×2, internal tooth washer ×1, certificate
Mechanical / Electrical parameters
- Output type: AC 2-wire NO
- Supply voltage: AC 24–220 V
- Power supply: AC two-wire
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Operating mode: normally open
- Mounting: flush/embeddable
- Indicator: yellow output indicator
- Voltage influence: within ±1% detection distance change for ±15% supply variation
- Insulation resistance: >50 MΩ (DC 500 V)
- Switching capacity: 5–200 mA
- Leakage current: <1.7 mA
- Impact resistance: 500 m/s, X/Y/Z 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, X/Y/Z 2 h each
- Weight: 65 g
Operating environment
- Operating temperature: -40 to +80 °C
Recommended applications
- 3C electronics industry
- Automated parking systems
- Logistics and warehousing
Features / specifications
- Model: CL12-RF2AK1/S
- Series: CL12 series proximity sensors
- Type: Inductive proximity switch, low-temperature version
- Sensing distance: 2 mm
- Form factor: M12 cylindrical
- Output: AC 2-wire, NO
- Operating voltage: AC 24–220 V
- Protection: IP67
- Cable length: 2 m (molded)
- Response time/frequency: 20 ms / 25 Hz
- Standard target: Fe 12×12×1 mm
- Temperature range: -40 to +80 °C
- Materials: brass (nickel-plated) housing, Teflon sensing face, PVC cable
- Accessories: nuts ×2, internal tooth washer ×1, certificate
- Weight: 65 g
