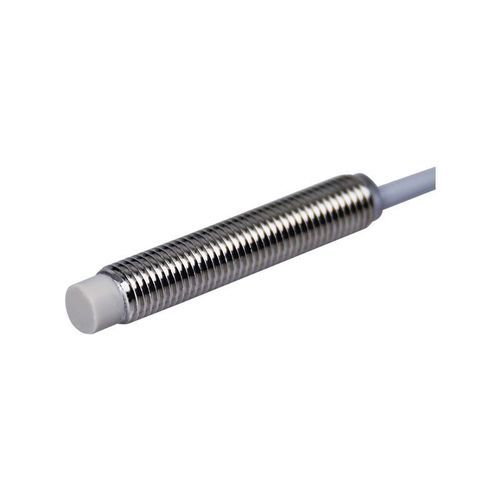

Inductive proximity sensor CL08-RN2DN1/ScylindricalM8with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- with switching function, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Measuring range
0.2 cm
(0.08 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Product overview
Main features
Accessories
Other information
Mechanical / electrical parameters
Operating environment
- Model: CL08-RN2DN1/S
- Series: CL08 series inductive proximity sensors
Main features
- Type: low-temperature version
- Sensing distance: 2 mm
- Housing: cylindrical
- Detection principle: inductive
- Size / thread: M8
- Output: NPN, normally open (NO)
- Cable length: 2 m (molded cable)
- Sensing direction: face/front
- Response frequency: 500 Hz
- Response time: 1 ms
- Target: metal objects
Accessories
- Nuts ×2, internal tooth washer ×1, certificate
Other information
- Hysteresis: less than 10% of sensing distance
- Standard target: iron 8×8×1 mm
- Temperature drift: within ±15% over -40 to +80°C relative to +23°C
- Materials: housing brass nickel-plated; sensing face Teflon; cable PVC
Mechanical / electrical parameters
- Output type: NPN NO
- Supply voltage: DC 12–24 V
- Supply: DC three-wire
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Switching mode: normally open
- Mounting: non-embeddable
- Current consumption: < 15 mA
- Indicator: yellow output indicator
- Protection circuits: short-circuit protection, surge protection
- Voltage influence: within ±15% supply, sensing distance change within ±1%
- Load current: < 100 mA
- Insulation resistance: > 50 MΩ (DC 500 V megger) between charged parts and housing
- Shock resistance: 500 m/s², 3 shocks in X, Y, Z directions
- Dielectric strength: AC 1000 V 50/60 Hz for 1 min between charged parts and housing
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm, 2 h in X, Y, Z
- Weight: 50 g
Operating environment
- Operating temperature: -40 to +80°C
