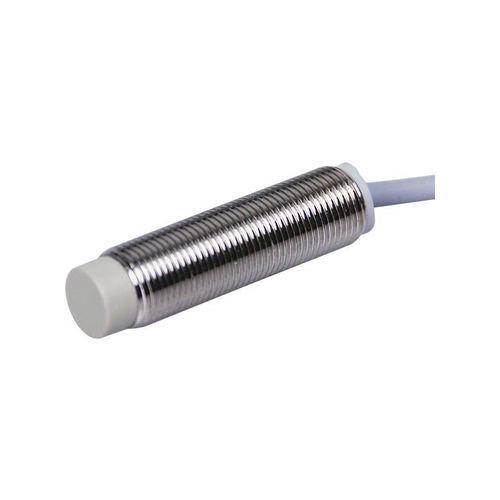

Inductive proximity sensor CL12-RN4AK1/ScylindricalM122-wire
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- 2-wire
- Electrical connection
- bare wires
- Supply voltage
- AC, 24VAC, 220VAC
- Mounting
- non-flush
- Material
- brass, PVC
- Protection level
- IP67
- Other characteristics
- with LED light
- Measuring range
0.4 cm
(0.16 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product
Technical specifications
Mechanical / Electrical parameters
Application environment
Documentation & illustrations
Characteristics / Specifications summary
- Model: CL12-RN4AK1/S
- Series: CL12
- Type: Low-temperature type
- Sensing principle: Inductive
- Detection distance: 4 mm
- Housing size: M12
- Output: AC two-wire, Normally Open (NO)
Technical specifications
- Cable length: 2 m
- Detection direction: Face/front
- Response frequency: 25 Hz
- Response time: 20 ms
- Target material: Metal (standard test: Iron 12×12×1 mm)
- Special feature: Low-temperature resistance
- Accessories: 2 nuts, 1 tooth washer, conformity certificate
- Hysteresis: <= 10% of sensing distance
- Temperature drift: Within ±15% over -40 to +80 °C (ref. +23 °C)
- Materials: Brass nickel-plated housing; Teflon sensing face; PVC cable
Mechanical / Electrical parameters
- Output: AC two-wire, NO
- Supply voltage: AC 24–220 V
- Power supply: AC two-wire
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Switching
- Operation mode: Normally open
- Mounting: Non-embedded
- Indicator: Yellow output LED
- Voltage influence: ±15% supply → detection change <= ±1%
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Switching capacity: 5–200 mA
- Leakage current: ≤ 1.7 mA
- Impact resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V, 1 min (sensing part vs. housing)
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
- Weight: 65 g
Application environment
- Operating temperature: -40 ~ +80 °C
Documentation & illustrations
- Wiring and external dimensions diagram
- Low-temperature housing dimensional drawing
- User manual (PDF)
Characteristics / Specifications summary
- Model series: CL12
- Detection distance: 4 mm
- Housing: M12 cylindrical
- Supply: AC 24–220 V, two-wire
- Output: AC two-wire NO
- Protection: IP67
- Operating temperature: -40 to +80 °C
- Weight: 65 g
