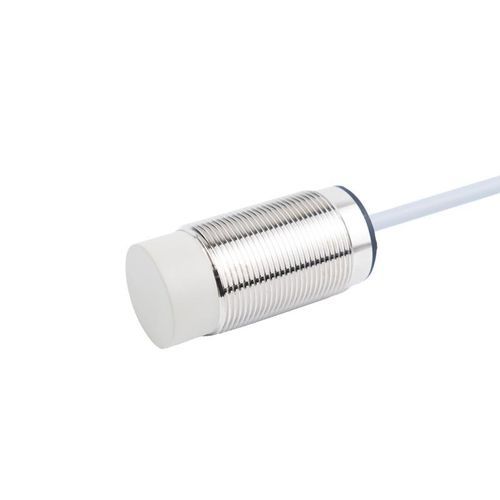

Inductive proximity sensor CL30-RN15DN1/ScylindricalM30with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, NPN
- Electrical connection
- bare wires
- Supply voltage
- DC
- Mounting
- non-flush
- Protection level
- IP67
- Other characteristics
- non-contact, 3-wire
- Measuring range
1.5 cm
(0.59 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Product overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Applications
- Series: CL30 proximity sensor series
- Model: CL30-RN15DN1/S
- Type: low-temperature version
- Sensing distance: 15 mm
- Form factor: cylindrical (M30)
- Sensing principle: inductive
- Output: NPN normally open (NPN NO)
Technical specifications
- Cable length: 2 m
- Sensing direction: frontal
- Response frequency: 500 Hz
- Response time: 1 ms
- Detectable objects: metallic
- Special feature: low-temperature operation
- Accessories: inspection certificate
- Hysteresis: < 10% of sensing distance
- Standard target: iron 45 × 45 × 1 mm
- Temperature drift: within ±15% of sensing distance over -40 ~ +80 °C relative to +23 °C
- Materials: housing brass nickel-plated; sensing face PTFE; cable PVC
Mechanical / Electrical parameters
- Output: NPN NO
- Supply voltage: DC 12–24 V
- Power wiring: three-wire DC
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Operating mode: normally open
- Mounting: non-embeddable (non-flush)
- Current consumption: < 15 mA
- Indicator: yellow output LED
- Protection circuits: short-circuit protection, power surge protection
- Voltage influence: within ±1% change in sensing distance for ±15% supply variation
- Load current: < 100 mA
- Insulation resistance: > 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times each
- Dielectric strength: AC 1000 V 50/60 Hz for 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z directions, 2 h each
- Weight: 160 g
Operating environment
- Operating temperature: -40 ~ +80 °C
Applications
- Metal detection and position sensing in industrial automation, suitable for low-temperature environments
