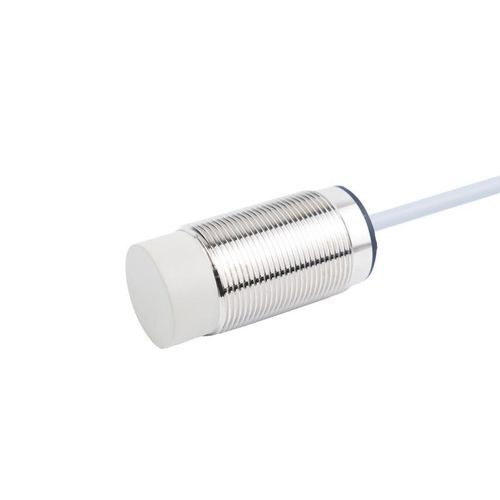

Inductive proximity sensor CL30-RN15AK1/ScylindricalM30with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, 2-wire
- Supply voltage
- AC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Other characteristics
- with LED light, non-contact
- Measuring range
1.5 cm
(0.59 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
Technical specifications
Mechanical/electrical parameters
Operating environment
Features / technical data
- Model: CL30-RN15AK1/S
- Series: CL30 series inductive proximity sensors
- Type: Low-temperature version
- Sensing principle: Inductive (for metal detection)
- Housing: Cylindrical, M30
- Sensing distance: 15 mm
- Output: AC two-wire normally open (AC 2-wire NO)
Technical specifications
- Sensing distance: 15 mm
- Cable length: 2 m
- Sensing direction: frontal
- Operating frequency: 25 Hz
- Response time: 20 ms
- Detectable targets: metal objects
- Special feature: low-temperature resistant
- Accessories: inspection certificate
- Hysteresis: less than 10% of sensing distance
- Standard test object: iron 45×45×1 mm
- Temperature drift: within ±15% relative to +23°C in -40~+80°C range
- Materials: housing brass nickel-plated; sensing face PTFE; cable PVC
Mechanical/electrical parameters
- Output type: AC 2-wire NO
- Supply voltage: AC 24~220 V
- Supply mode: AC two-wire
- Protection rating: IP67
- Connection: moulded cable
- Signal type: switching
- Operating mode: normally open
- Mounting: non-flush
- Indicator: yellow output LED
- Voltage influence: within ±15% of rated supply, sensing distance change within ±1%
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Switching capacity: 5–200 mA
- Leakage current: ≤1.7 mA
- Shock resistance: 500 m/s², 3 times each direction X, Y, Z
- Withstand voltage: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h each direction X, Y, Z
- Weight: 160 g
Operating environment
- Operating temperature: -40 ~ +80 °C
Features / technical data
- Model: CL30-RN15AK1/S
- Series: CL30 inductive proximity sensors
- Sensing principle: inductive (metal)
- Sensing distance: 15 mm
- Housing size: M30 (cylindrical)
- Power: AC 24~220 V (AC two-wire)
- Output: AC 2-wire NO, switching, 5–200 mA
- Protection: IP67
- Cable: moulded cable, 2 m, PVC
- Materials: housing brass nickel-plated; sensing face PTFE
- Temperature range: -40 ~ +80 °C
- Frequency/response: 25 Hz / 20 ms
- Hysteresis: <10% of sensing distance
- Standard target: iron 45×45×1 mm
- Weight: 160 g
