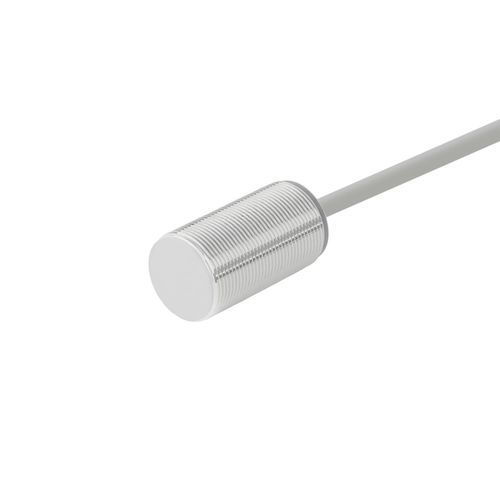

Inductive proximity sensor a suppcylindricalM30with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, 2-wire
- Supply voltage
- AC
- Mounting
- flush
- Protection level
- IP67
- Other characteristics
- with LED light
- Measuring range
Max.: 1 cm
(0.39 in)Min.: 1 cm
(0.39 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product
Main features
Technical specifications
Mechanical / Electrical parameters
Environment
Documentation
Additional technical data
- Model: CL30-RF10AK1/S
- Series: CL30 inductive proximity sensors
Main features
- Sensor type: low-temperature version
- Detection distance: 10 mm
- Shape: cylindrical (M30)
- Detection principle: inductive
- Output: AC two-wire, NO (normally open)
- Cable length: 2 m (moulded cable)
- Detection direction: front
- Response frequency: 25 Hz
- Response time: 20 ms
- Target: metallic objects
- Indicator: yellow output LED
Technical specifications
- Hysteresis: less than 10% of detection distance
- Standard test target: Fe 30 × 30 × 1 mm
- Temperature drift: within ±15% over -40 to +80 °C (referenced to +23 °C)
- Materials: housing – nickel-plated brass; sensing face – PTFE (Teflon); cable – PVC
- Weight: 160 g
Mechanical / Electrical parameters
- Output type: AC 2-wire NO
- Supply voltage: AC 24–220 V
- Power supply: AC two-wire
- Protection rating: IP67
- Connection: moulded cable
- Signal type: switching output
- Operating mode: normally open
- Mounting: flush/embedded
- Voltage influence: within ±1% detection distance change for ±15% supply variation
- Insulation resistance: >50 MΩ (DC 500 V megaohmmeter) between live parts and housing
- Switching capacity: 5–200 mA
- Leakage current: < 1.7 mA
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Shock resistance: 500 m/s, 3 shocks each on X, Y, Z
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h per axis
Environment
- Operating temperature: -40 to +80 °C
Documentation
- Product manual (PDF) and 3D model (STP) available for download
Additional technical data
- Model: CL30-RF10AK1/S
- Series: CL30
- Principle: Inductive
- Detection distance: 10 mm
- Diameter / Size: M30
- Supply: AC 24–220 V, two-wire
- Output: AC two-wire NO, switching output
- Protection: IP67
- Operating temperature: -40 to +80 °C
- Materials: housing – 黄铜镀镍; sensing face – 特氟龙; cable – PVC
- Weight: 160 g
