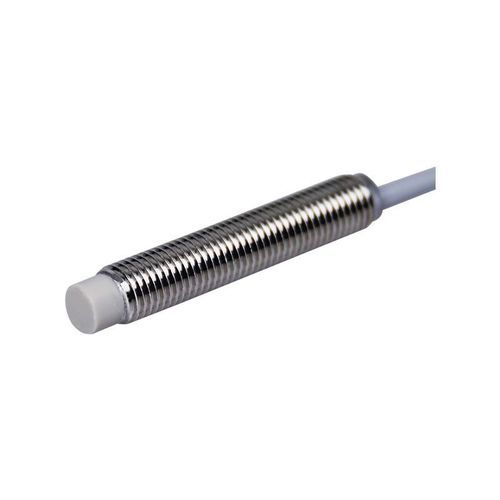

Inductive proximity sensor CL08-RN2DL1/ScylindricalM8with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- with switching function, 2-wire
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- threaded
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Other characteristics
- with LED light
- Measuring range
0.2 cm
(0.08 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Accessories & standards
Characteristics / technical summary
- Series: CL08 inductive proximity sensors
- Model: CL08-RN2DL1/S
- Type: low-temperature version
- Detection distance: 2 mm
- Form factor: cylindrical (M8)
- Sensing principle: inductive
- Output: DC 2-wire, normally open (NO)
- Cable length: 2 m (moulded cable)
Technical specifications
- Response frequency: 500 Hz
- Response time: 1 ms
- Detectable objects: metal (standard test piece: iron 8×8×1 mm)
- Hysteresis: <10% of detection distance
- Temperature drift: within ±15% of detection distance over -40 to +80°C (reference +23°C)
- Materials: housing nickel-plated brass; sensing face PTFE; cable PVC
Mechanical / electrical parameters
- Supply voltage: DC 12–24 V
- Power/connection: DC 2-wire
- Protection rating: IP67
- Connection: moulded cable
- Signal type: switching output
- Operating mode: normally open (NO)
- Indicator: yellow output LED
- Residual voltage: <3 V (<5 V for non-polar) at 100 mA load, cable 2 m
- Load current: 100 mA (with 2 m cable)
- Switching capacity: <100 mA
- Leakage current: <0.8 mA
- Insulation resistance: ≥50 MΩ (DC 500 V megohm meter)
- Withstand voltage: AC 1000 V 50/60 Hz for 1 min (charging parts vs housing)
- Impact resistance: 500 m/s², 3 times each X/Y/Z
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h each X/Y/Z
- Weight: 50 g
Operating environment
- Operating temperature: -40 to +80°C
Accessories & standards
- Included: 2 mounting nuts, 1 tooth washer, inspection certificate
- Standard test object: iron 8×8×1 mm
Characteristics / technical summary
- Model: CL08-RN2DL1/S
- Type: low-temperature resistant inductive sensor
- Detection distance: 2 mm for metal targets
- Form factor: M8 cylindrical
- Output: DC 2-wire NO
- Supply: DC 12–24 V
- Protection: IP67
- Cable: 2 m moulded PVC
- Response: 500 Hz / 1 ms
- Operating temperature: -40 to +80°C
- Materials: nickel-plated brass housing, PTFE sensing face
- Weight: 50 g
