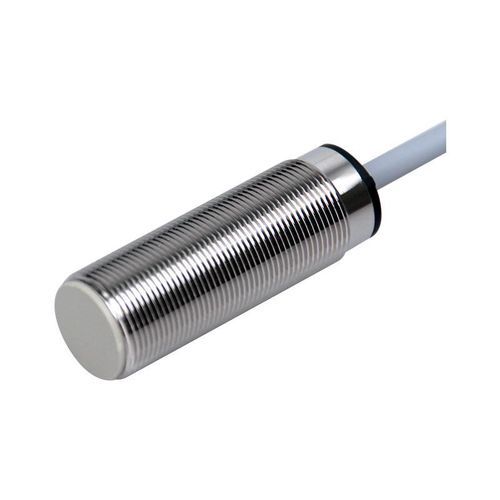

Inductive proximity sensor CL18 seriescylindricalM18with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- with switching function, 2-wire
- Supply voltage
- 24VAC, 220VAC, AC
- Mounting
- flush
- Material
- brass, PTFE, PVC
- Protection level
- IP67
- Measuring range
Max.: 0.5 cm
(0.2 in)Min.: 0.5 cm
(0.2 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
Main parameters
Materials and accessories
Mechanical / Electrical parameters
Operating environment
Product images and drawings
Features / Technical specifications summary
- Product name: CL18 series proximity sensor (example model: CL18-RF5AK1/S)
- Type: Low-temperature resistant
- Sensing distance: 5 mm
- Housing: Cylindrical (M18)
- Sensing principle: Inductive
- Output: AC two-wire normally open (AC 2-wire NO)
Main parameters
- Cable length: 2 m
- Sensing direction: Front
- Response frequency: 25 Hz
- Response time: 20 ms
- Detectable objects: Metal
- Standard test target: Iron 18×18×1 mm
- Hysteresis: Less than 10% of sensing distance
- Special requirement: Low-temperature resistant
Materials and accessories
- Housing: Nickel-plated brass
- Sensing face: PTFE
- Cable: PVC
- Accessories: 2 nuts, 1 internal tooth washer, certificate
Mechanical / Electrical parameters
- Supply voltage: AC 24~220 V
- Power supply type: AC two-wire
- Ingress protection: IP67
- Connection: Molded cable
- Signal type: Switching
- Operating mode: Normally open (NO)
- Mounting: Flush/embedded
- Indicator: Yellow output indicator
- Switching capacity: 5–200 mA
- Leakage current: ≤ 1.7 mA
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (live parts vs. housing)
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm, X/Y/Z 2 h
- Weight: 100 g
- Voltage influence: Within ±15% of rated supply, sensing distance variation within ±1%
Operating environment
- Operating temperature: -40 ~ +80 °C
- Temperature drift: Within ±15% (reference +23 °C) over -40 ~ +80 °C
Product images and drawings
- Product page includes appearance photos, wiring/output diagram, dimension drawing and 3D model for installation and design reference.
Features / Technical specifications summary
- Series: CL18
- Sensing distance: 5 mm
- Shape: M18 cylindrical
- Detection principle: Inductive
- Output: AC 2-wire, normally open (NO)
- Operating voltage: AC 24~220 V
- Ingress protection: IP67
- Cable length: 2 m (molded cable)
- Operating temperature: -40 ~ +80 °C
- Weight: 100 g
- Accessories: 2 nuts, 1 internal tooth washer, certificate
