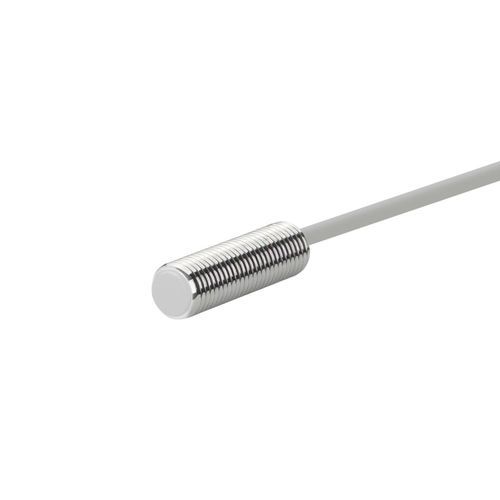

Inductive proximity sensor CL08-RF1AK1/S

cylindricalM8with switching function

Product
Inductive proximity sensor CL08-RF1AK1/S (low-temperature type, M8, sensing distance 1 mm)

Key features

• Low-temperature design
• Sensing distance: 1 mm
• Cylindrical M8 form factor
• Inductive sensing principle
• AC two-wire power, normally open (NO)
• Molded cable, 2 m
• Protection rating IP67

Technical specifications
Product type: Low-temperature type
Sensing distance: 1 mm
Housing: M8 cylindrical
Sensing principle: Inductive
Cable length: 2 m
Sensing direction: Frontal
Response frequency: 25 Hz
Response time: 20 ms
Target objects: Metal (standard test piece: Fe 8×8×1 mm)
Hysteresis: < 10% of sensing distance
Temperature drift: Within ±15% over -40 to +80 °C (reference +23 °C)
Materials: Housing nickel-plated brass; sensing face PTFE; cable PVC

Mechanical / electrical parameters
Output: AC 2-wire, NO
Supply voltage: AC 24–220 V
Power type: AC two-wire
Protection: IP67
Connection: Molded cable
Signal type: Switching
Operating mode: Normally open (NO)
Mounting: Flush (embedded)
Indicator: Yellow output LED
Voltage influence: Within ±1% detection change for ±15% supply variation
Insulation resistance: ≥50 MΩ (DC 500 V)
Switching capacity: 5–200 mA
Leakage current: ≤1.7 mA
Shock resistance: 500 m/s², 3 shocks per axis (X, Y, Z)
Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h per axis
Weight: 50 g

Operating environment
Operating temperature: -40 to +80 °C

Accessories

• Nuts ×2
• Toothed washer ×1
• Inspection certificate
