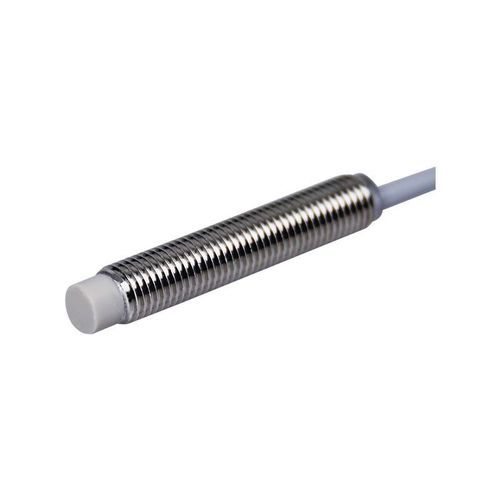

Inductive proximity sensor CL08-RN2AK1/ScylindricalM8with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- with switching function, 2-wire
- Supply voltage
- AC, 24VAC, 220VAC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Measuring range
0.2 cm
(0.08 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Suitable environment
Features / specification summary
- Model: CL08-RN2AK1/S
- Series: CL08 series proximity sensors
- Product type: Low-temperature resistant
- Sensing principle: Inductive (for metal detection)
- Housing size: M8, cylindrical
- Sensing distance: 2 mm
- Output: AC two-wire normally open (AC 2-wire NO)
- Cable length: 2 m moulded cable
Technical specifications
- Sensing direction: Frontal
- Response frequency: 25 Hz
- Response time: 20 ms
- Detectable objects: Metallic objects
- Standard target: Iron 8×8×1 mm
- Hysteresis: Less than 10% of sensing distance
- Temperature drift: Within ±15% of sensing distance over -40 to +80°C relative to +23°C
- Special requirement: Low-temperature resistant
- Accessories: 2 nuts, 1 tooth lock washer, certificate
- Materials: Housing: nickel-plated brass; sensing face: PTFE; cable: PVC
Mechanical / electrical parameters
- Supply voltage: AC 24–220 V
- Power type: AC two-wire
- Protection rating: IP67
- Connection: Moulded cable
- Signal type: Switching
- Operating mode: Normally open
- Mounting: Non-flush (non-embedded)
- Indicator: Yellow output indicator
- Voltage influence: Within ±1% change in sensing distance for ±15% supply variation
- Insulation resistance: ≥50 MΩ (measured with DC 500 V megger) between live parts and housing
- Switching capacity: 5–200 mA
- Leakage current: ≤1.7 mA
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times each
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z directions, 2 h each
- Weight: 50 g
Suitable environment
- Operating temperature: -40 to 80°C
Features / specification summary
- Series: CL08 series (proximity sensors)
- Sensing distance: 2 mm
- Shape/structure: M8 cylindrical
- Output / supply: AC two-wire, NO, AC 24–220 V
- Protection & reliability: IP67; shock, vibration, dielectric strength and high insulation resistance
- Target objects: Metallic objects; standard target iron 8×8×1 mm
- Operating temperature range: -40 to +80°C (low-temperature design)
