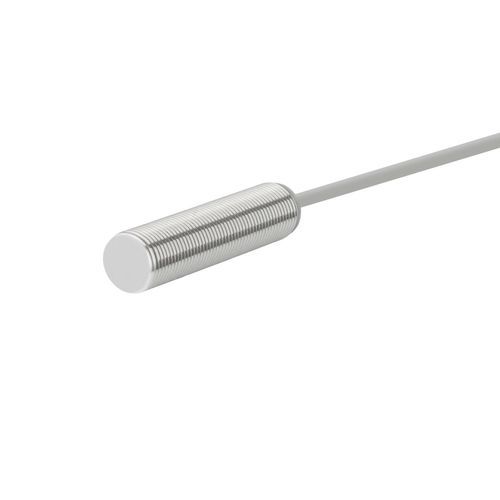

Inductive proximity sensor CL12-RF2DL1/ScylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, 2-wire
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass, PVC, PTFE
- Applications
- industrial
- Other characteristics
- non-contact
- Measuring range
0.2 cm
(0.08 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Product name
Key features
Technical specifications
Mechanical / Electrical parameters
Operating environment
Accessories
Features / Technical summary
- CL12-RF2DL1/S — CL12 series inductive proximity sensor
Key features
- Sensor type: low-temperature version
- Sensing distance: 2 mm
- Shape / size: cylindrical, M12
- Sensing principle: inductive
- Output: DC 2-wire, normally open (NO)
- Cable length: 2 m (molded cable)
- Sensing direction: face (front)
- Response frequency: 800 Hz
- Response time: 625 μs
Technical specifications
- Detectable objects: metallic targets
- Standard target: iron 12 × 12 × 1 mm
- Hysteresis: below 10% of sensing distance
- Temperature drift: within ±15% of sensing distance over -40 to +80°C (reference +23°C)
- Materials: nickel-plated brass housing; Teflon sensing face; PVC cable
Mechanical / Electrical parameters
- Supply voltage: DC 12–24 V
- Power supply: DC 2‑wire
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Operation: normally open (NO)
- Mounting: flush (embeddable)
- Indicator: yellow output indicator
- Residual voltage: below 3 V (non-polarity below 5 V) at 100 mA load, 2 m cable
- Voltage influence: sensing distance change within ±1% for ±15% supply variation
- Load current: 100 mA (with 2 m cable)
- Switching capacity: below 100 mA
- Leakage current: below 0.8 mA
- Insulation resistance: >50 MΩ (DC 500 V megger)
- Shock resistance: 500 m/s², 3 times each X, Y, Z
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h each X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz, 1 min (between live parts and housing)
- Weight: 65 g
Operating environment
- Operating temperature: -40 to +80 °C
Accessories
- Nuts ×2, tooth washer ×1, inspection certificate
Features / Technical summary
- Model: CL12-RF2DL1/S
- Sensing distance: 2 mm
- Format / size: M12 cylindrical
- Sensing principle: inductive
- Output: DC 2‑wire, NO
- Supply: DC 12–24 V
- Protection: IP67
- Cable: 2 m molded cable
- Response: 800 Hz / 625 μs
- Operating temperature: -40 to +80 °C
- Materials: nickel-plated brass housing, Teflon sensing face, PVC cable
