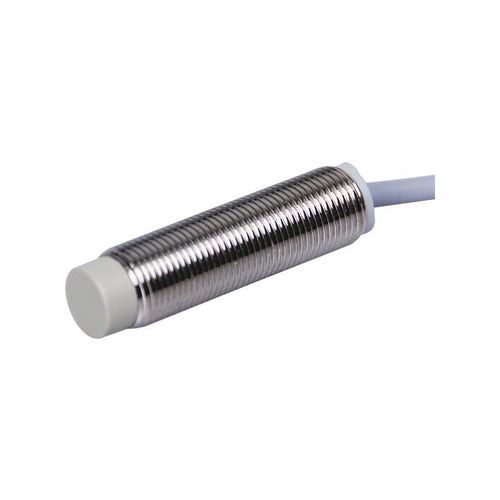

Inductive proximity sensor CL12-RN4DL1/ScylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, 2-wire
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Protection level
- IP67
- Other characteristics
- with LED light
- Measuring range
0.4 cm
(0.16 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Product name
Overview
Package/Accessories
Control/Dimensions
Operating environment
Features / Specifications
- CL12-RN4DL1/S — CL12 series inductive proximity sensor
Overview
- Type: Low-temperature version
- Sensing distance: 4 mm
- Housing: Cylindrical (M12)
- Sensing principle: Inductive
- Output: DC two-wire, normally open (NO)
Package/Accessories
- Includes: 2 nuts, 1 serrated washer, inspection certificate
Control/Dimensions
- Wiring diagram and dimensional drawings for the low-temperature version are provided (product page contains related images)
Operating environment
- Ambient temperature: -40 to +80 °C
Features / Specifications
- Type: Low-temperature
- Sensing distance: 4 mm
- Housing: Cylindrical (M12)
- Principle: Inductive
- Cable length: 2 m (molded cable)
- Sensing direction: Frontal
- Response frequency: 500 Hz
- Response time: 1 ms
- Detectable targets: Metal (standard target: iron 12×12×1 mm)
- Hysteresis: less than 10% of sensing distance
- Temperature drift: within ±15% over -40 to +80 °C compared to +23 °C
- Materials: Housing – nickel-plated brass; sensing face – PTFE; cable – PVC
- Output type: DC two-wire, normally open (NO)
- Supply voltage: DC 12–24 V
- Power supply: DC two-wire
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Switching
- Operation mode: Normally open
- Mounting: Non-flush
- Indicator: Yellow output LED
- Residual voltage: less than 3 V (non-polarity: less than 5 V) at 100 mA load, 2 m cable
- Voltage influence: sensing distance change within ±1% for ±15% supply variation
- Load current: 100 mA (2 m cable)
- Insulation resistance: ≥50 MΩ (measured with DC 500 V between live parts and housing)
- Switching capacity: less than 100 mA
- Leakage current: less than 0.8 mA
- Shock resistance: 500 m/s², 3 shocks per X/Y/Z direction
- Dielectric strength: AC 1000 V, 1 min (between live parts and housing)
- Vibration resistance: 10–55 Hz, 1.5 mm amplitude, 2 h per X/Y/Z direction
- Weight: 65 g
