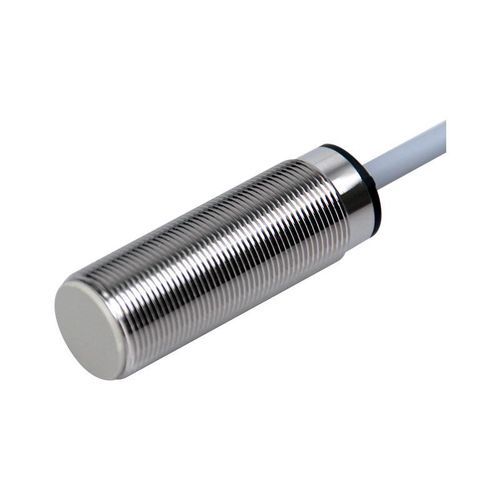

Inductive proximity sensor CL18-RF5DL1/ScylindricalM18with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- with switching function, 2-wire
- Electrical connection
- bare wires
- Supply voltage
- DC
- Mounting
- flush, non-flush
- Material
- brass, PVC, PTFE
- Other characteristics
- non-contact
- Measuring range
0.5 cm
(0.2 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product
Technical specifications
Mechanical / electrical parameters
Operating environment
Notes
Characteristics / technical specifications
- Series: CL18 proximity sensor series
- Type: Low-temperature version
- Sensing distance: 5 mm
- Housing: Cylindrical
- Detection principle: Inductive
- Size: M18
- Output: DC 2-wire NO
- Cable length: 2 m
Technical specifications
- Sensing direction: Frontal
- Response frequency: 800 Hz
- Response time: 625 μs
- Detectable objects: Metal (standard target: iron 18×18×1 mm)
- Hysteresis: Less than 10% of sensing distance
- Temperature influence: Within ±15% of sensing distance over -40 ~ +80°C (reference +23°C)
- Accessories: 2 nuts, 1 external tooth washer, inspection certificate
Mechanical / electrical parameters
- Output mode: DC 2-wire NO
- Supply voltage: DC 12–24 V
- Power supply type: 2-wire DC
- Protection class: IP67
- Connection: Molded cable
- Signal type: Switching
- Operating mode: Normally open (NO)
- Mounting: Flush/embedded
- Indicator: Yellow output indicator
- Residual voltage: ≤3 V (≤5 V non-polar), measured at 100 mA load, 2 m cable
- Supply voltage effect: ±1% change in sensing distance for ±15% supply variation
- Load current: 100 mA (with 2 m cable)
- Insulation resistance: ≥50 MΩ (DC 500 V megger)
- Switching capacity: <100 mA
- Leakage current: <0.8 mA
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, amplitude 1.5 mm, X/Y/Z directions, 2 h
- Weight: 100 g
Operating environment
- Operating temperature: -40 ~ +80 °C
Notes
- Standard target: iron 18×18×1 mm
- Accessories included: 2 nuts, 1 external tooth washer, inspection certificate
Characteristics / technical specifications
- Model: CL18-RF5DL1/S
- Series: CL18
- Sensing distance: 5 mm
- Shape: M18 (cylindrical)
- Detection principle: Inductive
- Output: DC 2-wire, Normally open (NO)
- Supply: DC 12–24 V
- Cable length: 2 m
- Response frequency: 800 Hz (response time 625 μs)
- Protection: IP67
- Operating temperature: -40 ~ +80 °C
- Materials: Housing brass nickel-plated, sensing face PTFE (Teflon), cable PVC
- Weight: 100 g
