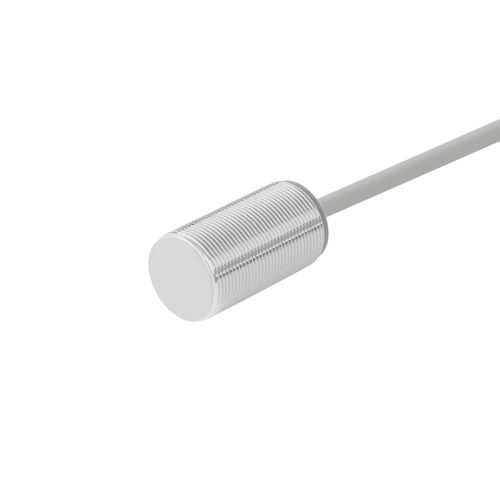

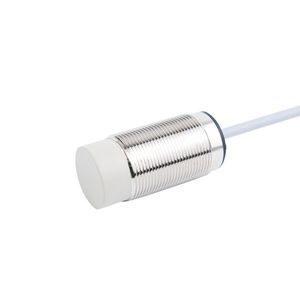

Inductive proximity sensor CL30-RF10DN1/ScylindricalM30with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with switching function, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass, PVC
- Protection level
- IP67
- Applications
- industrial
- Other characteristics
- non-contact, 3-wire
- Measuring range
1 cm
(0.39 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Recommended applications
Documentation
Key specifications
- Model: CL30-RF10DN1/S
- Series: CL30 series inductive proximity sensors
Overview
- Type: Low-temperature version
- Detection distance: 10 mm
- Housing shape: Cylindrical
- Detection principle: Inductive
- Thread / Size: M30
- Output: NPN, normally open (NO)
- Cable length: 2 m (molded)
Technical specifications
- Detection direction: Frontal
- Response frequency: 800 Hz
- Response time: 625 μs
- Detectable targets: Metallic objects (standard target: iron 30×30×1 mm)
- Hysteresis: < 10% of detection distance
- Temperature drift: Within -40 to +80 °C, reference +23 °C, detection distance variation within ±15%
- Materials: Housing: nickel-plated brass; sensing face: PTFE (Teflon); cable: PVC
- Accessories: Certificate
Mechanical / Electrical parameters
- Output: NPN, normally open (NO)
- Supply voltage: DC 12–24 V
- Wiring: Three-wire DC
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Switching
- Operating mode: Normally open
- Mounting: Flush / embedded
- Current consumption: < 15 mA
- Indicator: Yellow output LED
- Protection circuits: Short-circuit protection, surge protection
- Voltage influence: Within ±15% of rated supply, detection distance change within ±1%
- Load current: < 100 mA
- Insulation resistance: > 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z each direction, 3 times
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z each direction, 2 h
- Weight: 160 g
Operating environment
- Operating temperature: -40 to +80 °C
Recommended applications
- Electronics manufacturing (3C)
- Automated parking systems
- Logistics and warehousing
Documentation
- Product manual (PDF) available
Key specifications
- Model: CL30-RF10DN1/S
- Detection distance: 10 mm
- Thread: M30
- Output: NPN NO
- Supply: DC 12–24 V
- Cable: 2 m (molded)
- Protection: IP67
- Response frequency: 800 Hz
- Operating temperature: -40 to +80 °C
- Weight: 160 g
