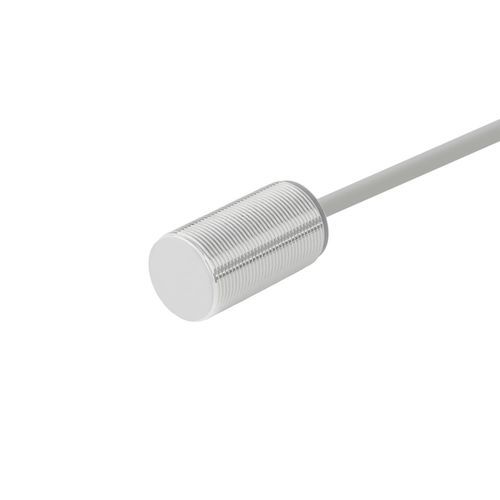

Inductive proximity sensor CL30-RF10AK1/ScylindricalM302-wire
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- 2-wire
- Supply voltage
- AC
- Measuring range
Min.: 1 cm
(0.39 in)Max.: 1 cm
(0.39 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Product identification
Key features
Technical specifications
Mechanical / electrical parameters
Operating environment
Summary specifications
- Model: CL30-RF10AK1/S
- Series: CL30 series inductive proximity sensors
- Brand: 长江传感
Key features
- Type: low-temperature version
- Sensing distance: 10 mm
- Housing form: cylindrical, M30
- Sensing principle: inductive
- Output: AC two‑wire, normally open (NO)
- Cable length: 2 m
Technical specifications
- Response frequency: 25 Hz
- Response time: 20 ms
- Target objects: metallic objects (standard test piece: iron 30×30×1 mm)
- Hysteresis: <10% of sensing distance
- Temperature drift: within ±15% of sensing distance across -40 °C to +80 °C (reference +23 °C)
- Materials: housing brass, nickel‑plated; sensing face Teflon; cable PVC
- Weight: 160 g
Mechanical / electrical parameters
- Supply voltage: AC 24–220 V (two‑wire AC)
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Switching mode: normally open
- Mounting: flush/embedded
- Indicator: yellow output indicator
- Insulation resistance: >50 MΩ (DC 500 V)
- Switching capacity: 5–200 mA
- Leakage current: <1.7 mA
- Dielectric strength: AC 1000 V 1 min between live parts and housing
- Shock resistance: 500 m/s², X/Y/Z directions, 3 shocks each
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
Operating environment
- Operating temperature range: -40 °C to +80 °C
Summary specifications
- Model: CL30-RF10AK1/S
- Series: CL30
- Sensing distance: 10 mm
- Housing: M30
- Cable length: 2 m
- Response frequency: 25 Hz
- Response time: 20 ms
- Supply: AC 24–220 V
- Output: AC two‑wire NO
- Protection: IP67
- Operating temperature: -40 °C to +80 °C
- Materials: brass (nickel‑plated) housing, Teflon sensing face, PVC cable
- Weight: 160 g
