Brushless motor B1020N
DCslotlessEMI-filtered

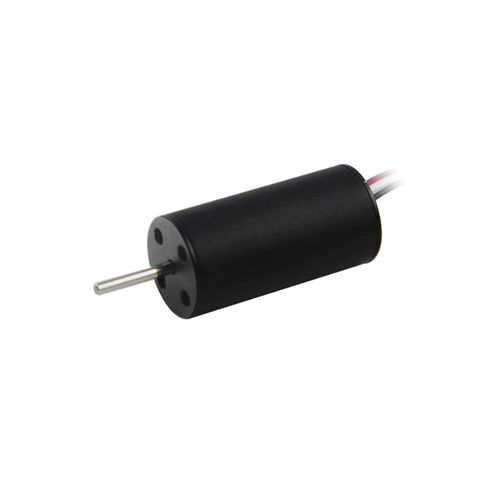

Brushless motor - B1020N - Constar Motion Co., LTD - DC / slotless / EMI-filtered
Brushless motor - B1020N - Constar Motion Co., LTD - DC / slotless / EMI-filtered
Brushless motor - B1020N - Constar Motion Co., LTD - DC / slotless / EMI-filtered - image - 2
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushless, DC
Configuration
slotless
Protection class
EMI-filtered
Applications
industrial, for medical equipment
Other characteristics
direct-drive, with built-in encoder
Power

0.4 W, 9 W, 11.5 W
(0 hp, 0.01 hp, 0.02 hp)

Intensity

Max.: 2.6 A

Min.: 0.07 A

Torque

Max.: 0.0112 Nm
(0.008261 ft.lb)

Min.: 0.0001 Nm
(0.000074 ft.lb)

Rotational speed

Max.: 39,300 rpm
(246,929.1826 rad.min-1)

Min.: 4,300 rpm
(27,017.6968 rad.min-1)

Diameter

10 mm
(0.39 in)

Description

B1020N 10mm Brushless DC Motor Diameter：10mm Length：20mm Voltage：3.7v 7.4v Power：11.5W Speed：39300rpm Applications Medical Equipment、Industrial Automation Options Lead wires length、Shaft length、Special coils、Gearheads、Bearing type、 Encoder、Driver Unit Price Price upon request
