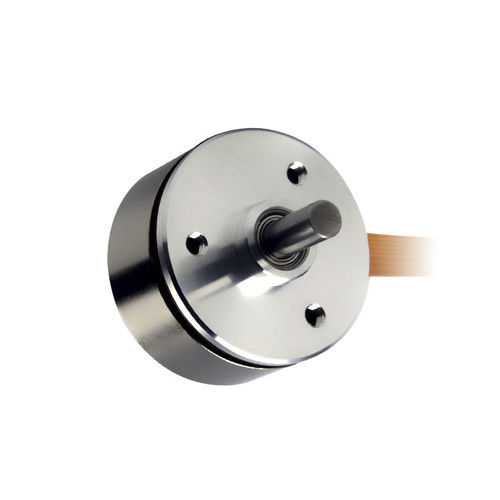

Brushless motor BO3216NB2BDC24 V10 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V, 10 V
- Configuration
- external rotor
- Applications
- for gimbal
- Other characteristics
- with built-in encoder, integrated-drive
- Power
17.5 W, 32.7 W
(0.02 hp, 0.04 hp)- Intensity
1.4 A, 2.6 A
- Torque
0.0219 Nm, 0.0416 Nm
(0.016153 ft.lb, 0.030683 ft.lb)- Rotational speed
4,520 rpm, 5,290 rpm
(28,399.9976 rad.min-1, 33,238.0503 rad.min-1)- Diameter
32 mm
(1.26 in)
Description
BO3216NB2B
32mm Brushless UAV Gimbals motor
Diameter：32mm Thickness ：16mm Voltage：10V、24V Max. output power ：32.7W Speed：6600rpm
Applications
UAV gimbals and handheld gimbals
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
