Brushless motor BO1808NBH2B
DCexternal rotorfor robotics

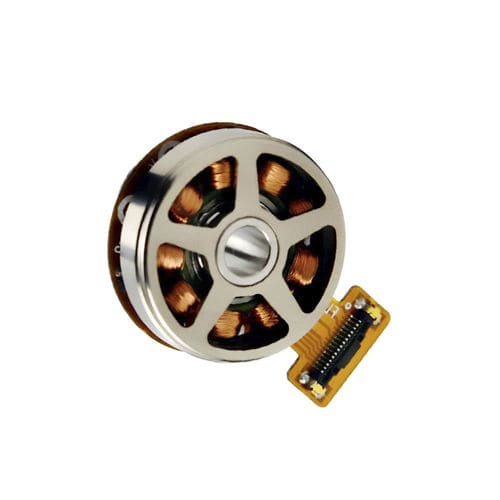

Brushless motor - BO1808NBH2B - Constar Motion Co., LTD - DC / external rotor / for robotics
Brushless motor - BO1808NBH2B - Constar Motion Co., LTD - DC / external rotor / for robotics
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushless, DC
Configuration
external rotor
Applications
for robotics, for automotive applications, for drones, for AGV
Other characteristics
with built-in encoder, integrated-drive
Power

1.6 W
(0 hp)

Intensity

0.3 A

Torque

0.0012 Nm
(0.000885 ft.lb)

Rotational speed

Max.: 14,300 rpm
(89,849.5499 rad.min-1)

7,890 rpm
(49,574.3321 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Diameter

18 mm
(0.71 in)

Description

BO1808NBH2B
18mm Brushless DC Motor with Hall Sensor

Diameter18mm Thickness 8mm Voltage11.4V Max. output power 1.6W Speed14300rpm

Applications
UAV gimbals and handheld gimbals

Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver

Unit Price
Price upon request
