Brushless motor B2950NH2B
DC24 V18 V

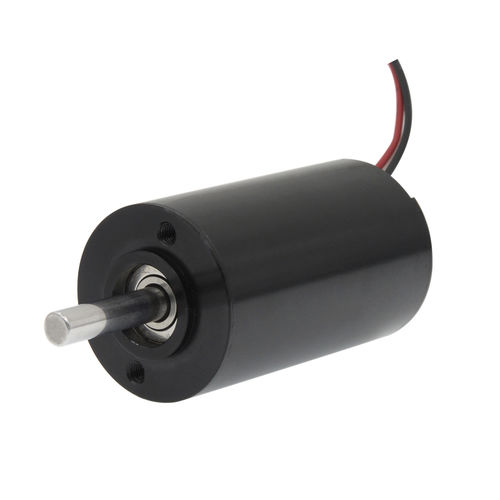

Brushless motor - B2950NH2B - Constar Motion Co., LTD - DC / 24 V / 18 V
Brushless motor - B2950NH2B - Constar Motion Co., LTD - DC / 24 V / 18 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 18 V
Configuration
slotless
Applications
industrial, for medical equipment
Other characteristics
integrated-drive, with built-in encoder
Power

79 W, 105 W
(0.11 hp, 0.14 hp)

Intensity

1.42 A, 1.9 A

Torque

0.021 Nm, 0.028 Nm
(0.015489 ft.lb, 0.020652 ft.lb)

Rotational speed

11,800 rpm, 13,000 rpm
(74,141.5866 rad.min-1, 81,681.409 rad.min-1)

Diameter

29 mm
(1.14 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

B2950NH2B 24V Inner Rotor With Hall Brushless DC Motor Diameter：29mm Length：50mm Voltage：18V、24V Max. output power ：105W Speed：13000rpm Applications Medical Equipment、Industrial Automation Options Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver Unit Price Price upon request
