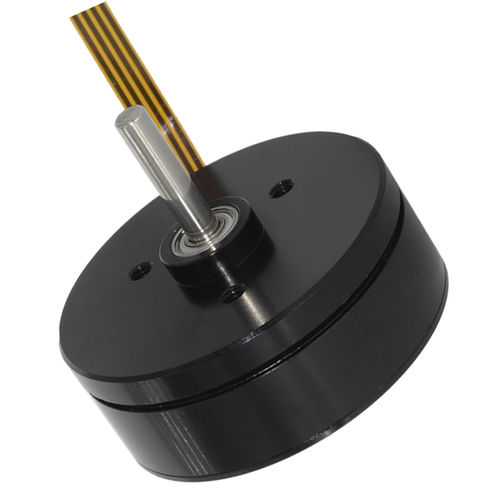

Brushless motor BO4316NB2BDC24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 12 V
- Other characteristics
- integrated-drive, with built-in encoder
- Power
25 W, 37 W
(0.034 hp, 0.05 hp)- Intensity
1.43 A, 2.37 A
- Torque
0.0695 Nm, 0.0797 Nm
(0.0513 ft.lb, 0.0588 ft.lb)- Rotational speed
2,250 rpm, 2,640 rpm
(14,137.17 rad.min-1, 16,587.61 rad.min-1)- Diameter
43 mm
(1.69 in)
Description
BO4316NB2B
43mm 24v Brushless Gimbals motor
Diameter：43mm Thickness ：16mm Voltage：12V、24V Max. output power ：37W Speed：3800rpm
Applications
UAV gimbals and handheld gimbals
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
