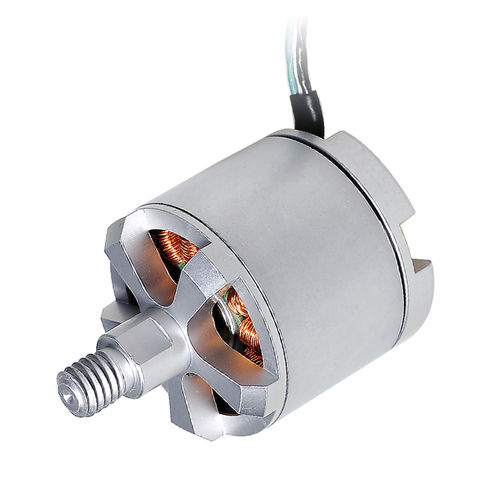

Brushless motor BO2828N2BDC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V, 12 V, 36 V
- Configuration
- outer-rotor
- Other characteristics
- integrated-drive, with built-in encoder
- Power
379 W, 380 W, 395 W
(0.52 hp, 0.52 hp, 0.54 hp)- Intensity
4.8 A, 5.9 A, 11.3 A
- Torque
0.1199 Nm, 0.1227 Nm, 0.1568 Nm
(0.088434 ft.lb, 0.090499 ft.lb, 0.11565 ft.lb)- Rotational speed
7,320 rpm, 8,540 rpm, 8,750 rpm
(45,992.9164 rad.min-1, 53,658.4025 rad.min-1, 54,977.8714 rad.min-1)- Diameter
28 mm
(1.1 in)
Description
BO2828N2B
2828 Outer Rotor Brushless DC Motor
Diameter：28mm Lengh ：28mm Voltage：12V、24V、36V Max. output power ：379W Speed：11200rpm
Applications
UAV, aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
