Brushless motor BO1812N2BDC12 V6 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V, 6 V, 9 V
- Configuration
- outer-rotor
- Other characteristics
- integrated-drive, with built-in encoder
- Power
20.6 W, 20.7 W
(0.03 hp, 0.03 hp)- Intensity
1.5 A, 2.1 A
- Torque
0.0094 Nm, 0.0099 Nm, 0.0103 Nm
(0.006933 ft.lb, 0.007302 ft.lb, 0.007597 ft.lb)- Rotational speed
9,580 rpm, 9,690 rpm, 10,200 rpm
(60,192.9152 rad.min-1, 60,884.0656 rad.min-1, 64,088.4901 rad.min-1)- Diameter
18 mm
(0.71 in)
Description
BO1812N2B

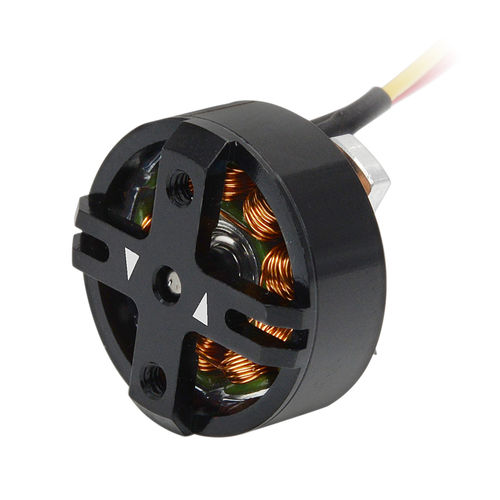

18mm 12V Outer Rotor Brushless DC Motor
Diameter：18mm Lengh ：12mm Voltage：6V、9V、12V Max. output power ：20.6W Speed：15800rpm
Applications
UAV, aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
