DC motor BO2826N2Bbrushless24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 12 V, 36 V
- Configuration
- external rotor
- Other characteristics
- integrated-drive, with built-in encoder
- Power
247 W, 248 W, 254 W
(0.336 hp, 0.337 hp, 0.345 hp)- Intensity
2.7 A, 4.1 A, 8.1 A
- Torque
0.0867 Nm, 0.0895 Nm, 0.0896 Nm
(0.0639 ft.lb, 0.066 ft.lb, 0.0661 ft.lb)- Rotational speed
7,820 rpm, 8,040 rpm, 8,500 rpm
(49,134.51 rad.min-1, 50,516.81 rad.min-1, 53,407.08 rad.min-1)- Diameter
28 mm
(1.1 in)
Description

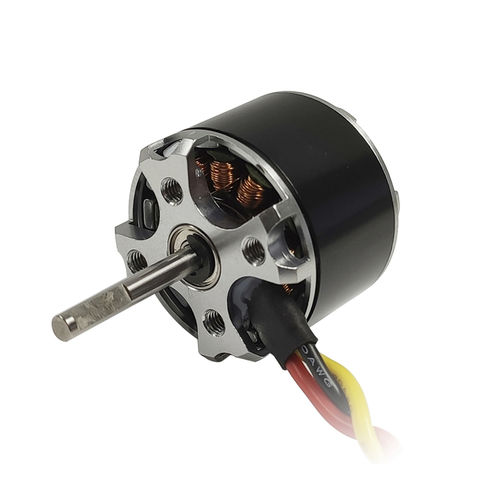

BO2826N2B
12V DC Brushless RC Plane Motor
Diameter：28mm Lengh ：26mm Voltage：12V、24V、36V Max. output power ：247W Speed：10400rpm
Applications
Plane,UAV, aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
