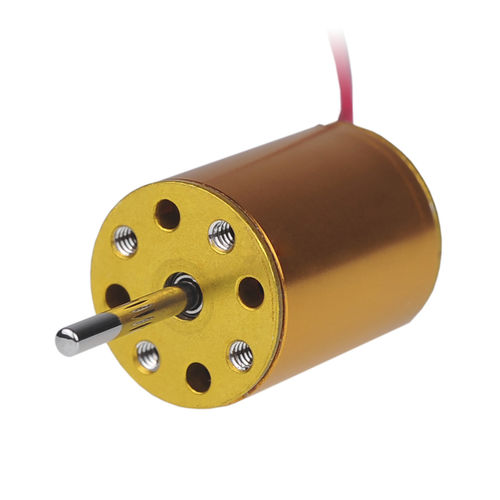

Brushless motor B1215N2BDCslotlessindustrial
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Configuration
- slotless
- Applications
- industrial, for medical equipment
- Other characteristics
- integrated-drive, with built-in encoder
- Power
0.8 W, 4.3 W, 4.6 W
(0 hp, 0.01 hp, 0.01 hp)- Intensity
Max.: 5.4 A
Min.: 0.1 A
- Torque
Max.: 0.0026 Nm
(0.001918 ft.lb)Min.: 0.0003 Nm
(0.000221 ft.lb)- Rotational speed
Max.: 42,500 rpm
(267,035.3756 rad.min-1)Min.: 4,400 rpm
(27,646.0154 rad.min-1)- Diameter
12 mm
(0.47 in)
Description
B1215N2B
1215 Brushless DC Motor
Diameter：12mm Length：15mm Voltage：3.7v 4.5v 7.4v Max. output power ：4.3W Speed：46000rpm
Applications
Medical Equipment、Industrial Automation
Options
Lead wires length、Shaft length、Special coils、Gearheads、Bearing type、
Encoder、Driver
Unit Price
Price upon request
