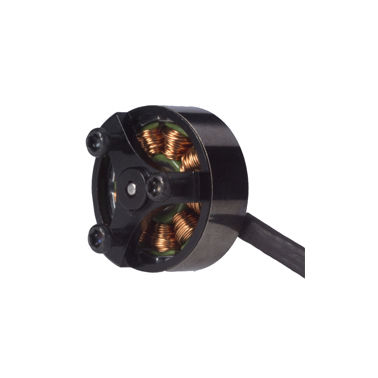

Brushless motor BO2316N2BDC12 V6 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V, 6 V, 9 V
- Configuration
- outer-rotor
- Other characteristics
- integrated-drive, with built-in encoder
- Power
70 W, 71 W, 79 W
(0.1 hp, 0.1 hp, 0.11 hp)- Intensity
4.9 A, 6.3 A, 8.1 A
- Torque
0.03 Nm, 0.0303 Nm, 0.0304 Nm
(0.022127 ft.lb, 0.022348 ft.lb, 0.022422 ft.lb)- Rotational speed
7,310 rpm, 9,920 rpm, 10,560 rpm
(45,930.0846 rad.min-1, 62,329.1982 rad.min-1, 66,350.4368 rad.min-1)- Diameter
23 mm
(0.91 in)
Description
BO2316N2B
23mm 9V Outer Rotor Brushless DC Motor
Diameter：23mm Lengh ：16mm Voltage：6V、9V、12V Max. output power ：70W Speed：17000rpm
Applications
UAV, aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
