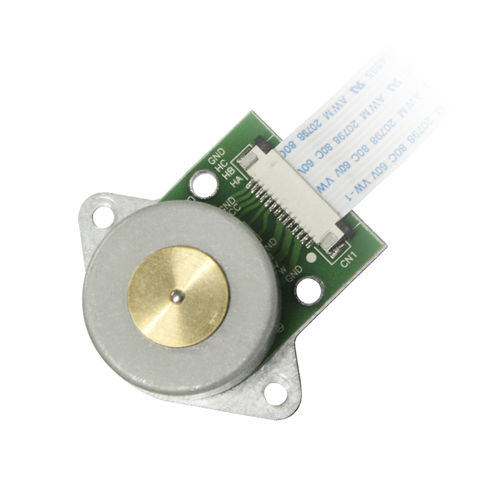

Brushless motor BO2914NBH2B
DC24 V12 V

Brushless motor - BO2914NBH2B - Constar Motion Co., LTD - DC / 24 V / 12 V
Brushless motor - BO2914NBH2B - Constar Motion Co., LTD - DC / 24 V / 12 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 12 V, 18 V
Configuration
outer-rotor
Applications
industrial, for medical equipment
Other characteristics
precision, integrated-drive, with built-in encoder
Power

13.4 W, 13.5 W, 13.7 W
(0.02 hp, 0.02 hp, 0.02 hp)

Intensity

0.56 A, 0.75 A, 1.12 A

Torque

0.0191 Nm, 0.0197 Nm, 0.02 Nm
(0.014087 ft.lb, 0.01453 ft.lb, 0.014751 ft.lb)

Rotational speed

4,000 rpm
(25,132.7412 rad.min-1)

Diameter

29 mm
(1.14 in)

Description

BO2914NBH2B 29mm Outer Rotor Brushless DC Motor With Hall Diameter：29mm Lengh ：14mm Voltage：12V、18V、24V Max. output power ：13.7W Speed：6300rpm Applications Precision drives in medical equipment, industrial automation fields Options Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver Unit Price Price upon request
