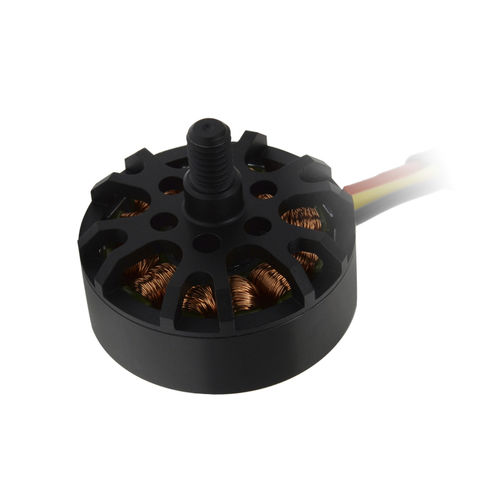

Brushless motor BO3823N2BDC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V, 12 V, 36 V
- Configuration
- outer-rotor
- Other characteristics
- integrated-drive, with built-in encoder
- Power
301 W, 317 W, 318 W
(0.41 hp, 0.43 hp, 0.43 hp)- Intensity
3.8 A, 5.8 A, 12.3 A
- Torque
0.1631 Nm, 0.1642 Nm, 0.1735 Nm
(0.120296 ft.lb, 0.121108 ft.lb, 0.127967 ft.lb)- Rotational speed
5,690 rpm, 6,210 rpm, 6,300 rpm
(35,751.3244 rad.min-1, 39,018.5808 rad.min-1, 39,584.0674 rad.min-1)- Diameter
38 mm
(1.5 in)
Description
BO3823N2B
38mm Outer Rotor Brushless DC Motor
Diameter：38mm Lengh ：23mm Voltage：12V、24V、36V Max. output power ：379W Speed：7900rpm
Applications
Drone Quadcopter,UAV, aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
