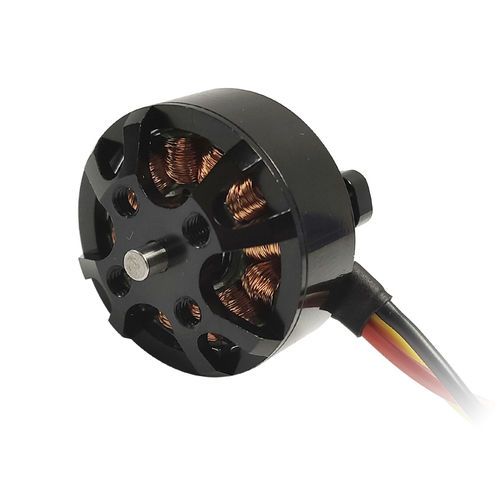

Brushless motor BO2820N2BDC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V, 12 V, 36 V
- Configuration
- outer-rotor
- Other characteristics
- integrated-drive, with built-in encoder
- Power
244 W, 256 W, 263 W
(0.33 hp, 0.35 hp, 0.36 hp)- Intensity
3 A, 4.7 A, 9.1 A
- Torque
0.0685 Nm, 0.073 Nm, 0.0751 Nm
(0.050523 ft.lb, 0.053842 ft.lb, 0.055391 ft.lb)- Rotational speed
10,350 rpm, 10,680 rpm, 11,310 rpm
(65,030.9679 rad.min-1, 67,104.4191 rad.min-1, 71,062.8258 rad.min-1)- Diameter
28 mm
(1.1 in)
Description
BO2820N2B
24V Outer Rotor 1000kv Brushless Motor
Diameter：28mm Lengh ：20mm Voltage：12V、24V、36V Max. output power ：256W Speed：14000rpm
KV Value ： 1000-1168 rpm/V
Applications
UAV, aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
