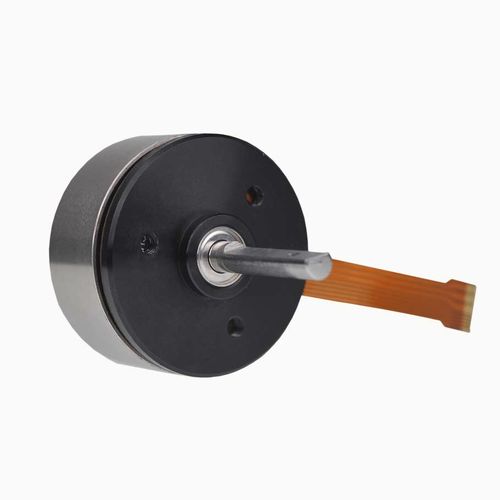

Brushless motor BO2015NB2B12 V5 Vflat
Add to favorites
Compare this product
Characteristics
- Type
- brushless
- Voltage
- 12 V, 5 V
- Configuration
- flat
- Applications
- for robotics
- Other characteristics
- integrated-drive, with built-in encoder
- Power
9 W, 9.1 W
(0.012 hp, 0.012 hp)- Intensity
1.01 A, 2.4 A
- Torque
0.0074 Nm, 0.0091 Nm
(0.0055 ft.lb, 0.0067 ft.lb)- Rotational speed
6,440 rpm, 7,940 rpm
(40,463.71 rad.min-1, 49,888.49 rad.min-1)- Diameter
20 mm
(0.79 in)
Description
BO2015NB2B
12V Flat brushless motor For Robot Joint
Diameter：20mm Thickness ：15mm Voltage：5V 、12V Max. output power ：9W Speed：11300rpm
Applications
Robot，UAV gimbals and handheld gimbals
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
