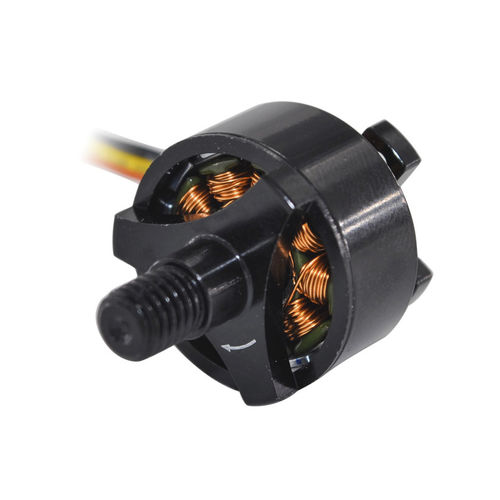

Brushless motor BO1815N2B
DC12 V6 V

Brushless motor - BO1815N2B - Constar Motion Co., LTD - DC / 12 V / 6 V
Brushless motor - BO1815N2B - Constar Motion Co., LTD - DC / 12 V / 6 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushless, DC
Voltage
12 V, 6 V, 9 V
Configuration
outer-rotor
Other characteristics
integrated-drive, with built-in encoder
Power

42 W, 47 W, 49 W
(0.06 hp, 0.06 hp, 0.07 hp)

Intensity

3.7 A, 4.6 A, 6.1 A

Torque

0.0171 Nm, 0.018 Nm, 0.0185 Nm
(0.012612 ft.lb, 0.013276 ft.lb, 0.013645 ft.lb)

Rotational speed

9,550 rpm, 11,070 rpm, 11,100 rpm
(60,004.4197 rad.min-1, 69,554.8614 rad.min-1, 69,743.3569 rad.min-1)

Diameter

18 mm
(0.71 in)

Description

BO1815N2B 1815 6V Outer Rotor Brushless DC Motor Diameter：18mm Lengh ：15mm Voltage：6V、9V、12V Max. output power ：42W Speed：19900rpm Applications UAV, aeromodelling, etc. Options Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver Unit Price Price upon request
