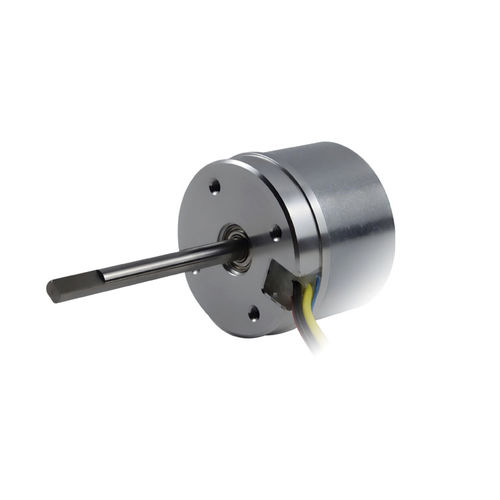

Brushless motor BO4840NH2B
DC24 V36 V

Brushless motor - BO4840NH2B - Constar Motion Co., LTD - DC / 24 V / 36 V
Brushless motor - BO4840NH2B - Constar Motion Co., LTD - DC / 24 V / 36 V
Brushless motor - BO4840NH2B - Constar Motion Co., LTD - DC / 24 V / 36 V - image - 2
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 36 V, 18 V
Configuration
outer-rotor
Other characteristics
high-power, with speed controller, with built-in encoder
Power

2,367 W, 2,701 W, 2,928 W
(3.22 hp, 3.67 hp, 3.98 hp)

Intensity

12.9 A, 19.5 A, 25.7 A

Torque

0.12 Nm, 0.423 Nm, 0.427 Nm
(0.088507 ft.lb, 0.311989 ft.lb, 0.314939 ft.lb)

Rotational speed

9,350 rpm, 9,400 rpm, 9,440 rpm
(58,747.7826 rad.min-1, 59,061.9419 rad.min-1, 59,313.2693 rad.min-1)

Diameter

48 mm
(1.89 in)

Description

BO4840NH2B 500w Outer Rotor Brushless DC Motor Diameter：48mm Lengh ：40mm Voltage：18V、24V、36V Max. output power ：2367W Speed：10500rpm Applications UAV, aeromodelling, etc. Options Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver Unit Price Price upon request
