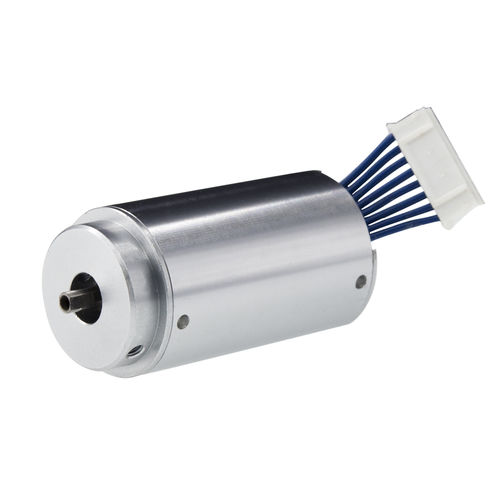

Brushless motor B2440NH2B
DC24 V18 V

Brushless motor - B2440NH2B - Constar Motion Co., LTD - DC / 24 V / 18 V
Brushless motor - B2440NH2B - Constar Motion Co., LTD - DC / 24 V / 18 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 18 V
Configuration
slotless
Applications
industrial, for medical equipment
Other characteristics
integrated-drive, with built-in encoder
Power

39 W, 41.9 W, 56 W
(0.05 hp, 0.06 hp, 0.08 hp)

Intensity

Min.: 0.14 A

Max.: 9.6 A

Torque

Min.: 0.0137 Nm
(0.010105 ft.lb)

Max.: 0.1254 Nm
(0.09249 ft.lb)

Rotational speed

Min.: 10,200 rpm
(64,088.4901 rad.min-1)

Max.: 17,000 rpm
(106,814.1502 rad.min-1)

Diameter

24 mm
(0.94 in)

Description

B2440NH2B 24V Brushless DC Motor Diameter：24mm Length：40mm Voltage：18V 24V Max. output power ：56W Speed：17000rpm Applications Medical Equipment、 Industrial Automation、Electric Tool Options Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver Unit Price Price upon request
