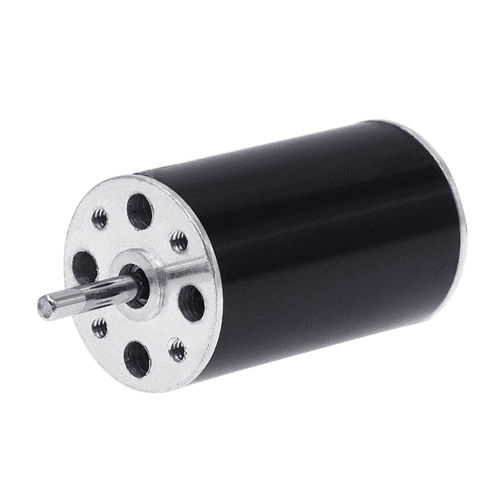

BLDC motor B1220N2BDCEMI-filteredslotless
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- BLDC
- Protection class
- EMI-filtered
- Configuration
- slotless
- Applications
- industrial, for medical equipment
- Other characteristics
- integrated-drive, with built-in encoder
- Power
2.2 W, 2.5 W, 3.3 W
(0.003 hp, 0.003 hp, 0.004 hp)- Intensity
Min.: 0.1 A
Max.: 2.5 A
- Torque
Min.: 0.0014 Nm
(0.001 ft.lb)Max.: 0.0058 Nm
(0.0043 ft.lb)- Rotational speed
Min.: 10,800 rpm
(67,858.4 rad.min-1)Max.: 23,000 rpm
(144,513.26 rad.min-1)- Diameter
12 mm
(0.47 in)
Description
B1220N2B
1220 5v BLDC Motor
Diameter：12mm Length：20mm Voltage：5v,6v 7.4v Max. output power ：11.5W Speed：30000rpm
Applications
Medical Equipment、Industrial Automation
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
