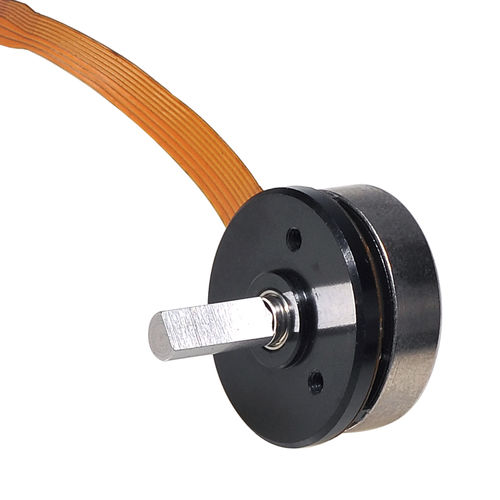

Brushless motor BO2010NB2BDC12 V10 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V, 10 V
- Configuration
- external rotor, flat
- Applications
- for gimbal
- Other characteristics
- with built-in encoder, integrated-drive
- Power
7.3 W, 15 W
(0.01 hp, 0.02 hp)- Intensity
0.9 A, 1 A
- Torque
0.0035 Nm, 0.0041 Nm
(0.002581 ft.lb, 0.003024 ft.lb)- Rotational speed
11,120 rpm, 21,420 rpm
(69,869.0206 rad.min-1, 134,585.8293 rad.min-1)- Diameter
20 mm
(0.79 in)
Description
BO2010NB2B
2010 Flat Outerrotor brushless motor
Diameter：20mm Thickness ：10mm Voltage：10V 、12V Max. output power ：15W Speed：28000rpm
Applications
UAV gimbals and handheld gimbals
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
