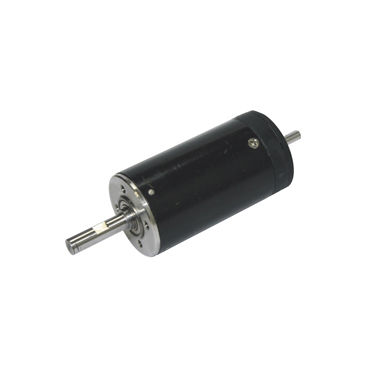

Brushless motor B3265NH2B
DC24 V18 V

Brushless motor - B3265NH2B - Constar Motion Co., LTD - DC / 24 V / 18 V
Brushless motor - B3265NH2B - Constar Motion Co., LTD - DC / 24 V / 18 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 18 V
Configuration
slotless
Applications
industrial, for medical equipment
Other characteristics
integrated-drive, with built-in encoder
Power

161.6 W, 171 W, 215 W
(0.22 hp, 0.23 hp, 0.29 hp)

Intensity

Max.: 36.9 A

Min.: 0.53 A

Torque

Max.: 0.5475 Nm
(0.403815 ft.lb)

Min.: 0.017 Nm
(0.012539 ft.lb)

Rotational speed

Max.: 15,000 rpm
(94,247.7796 rad.min-1)

Min.: 10,500 rpm
(65,973.4457 rad.min-1)

Diameter

32 mm
(1.26 in)

Description

B3265NH2B 32mm18V DC Brushless Motor Diameter：32mm Length：65mm Voltage：18V、24V Max. output power ：215W Speed：15000rpm Applications Medical Equipment、Industrial Automation Options Lead wires length、Shaft length、Special coils、Gearheads、Bearing type、 Encoder、Driver Unit Price Price upon request
