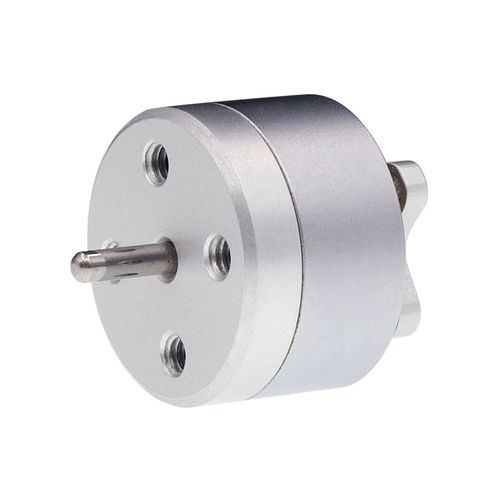

Brushless motor BO1511N2BDCouter-rotorintegrated-drive
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Configuration
- outer-rotor
- Other characteristics
- integrated-drive, with built-in encoder
- Power
28 W, 29 W
(0.04 hp, 0.04 hp)- Intensity
2.1 A, 2.6 A
- Torque
0.004 Nm
(0.00295 ft.lb)- Rotational speed
25,000 rpm, 25,100 rpm
(157,079.6327 rad.min-1, 157,707.9512 rad.min-1)- Diameter
15 mm
(0.59 in)
Description
BO1511N2B
15mm 6V Outer Rotor Brushless DC Motor
Diameter：15mm Lengh ：11mm Voltage：6V、7.6V Max. output power ：29W Speed：35000rpm
Applications
UAV, Plane、Aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
