Product overview

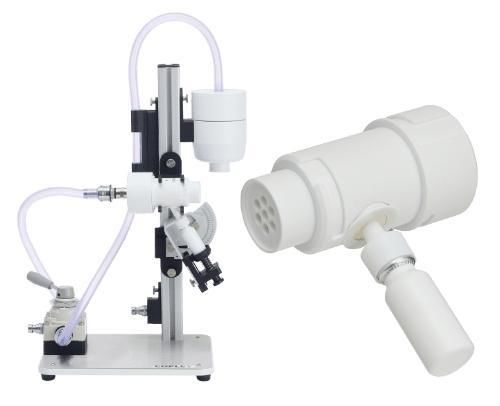

Developed by the Department of Pharmaceutics and Biopharmaceutics at Kiel University and commercialised in partnership with Copley Scientific, the Kiel Nasal Inlet (KNI) is a precision-engineered dose collection apparatus for Delivered Dose Uniformity (DDU) and Aerodynamic Particle Size Distribution (APSD) testing of nasal drug products. The KNI supports vertical and near-vertical actuation, providing complete dose capture while minimising splashback, drips and leakage. Its vented design permits testing with or without applied airflow and use with an induction port for APSD assessment of particles/droplets <10 μm in line with EMA and FDA guidance.

Key features

• Enables vertical or near-vertical actuation for DDU and APSD tests
• Minimises splashback and leakage to ensure full dose collection
• Vented design supports clinically realistic sampling when used with applied airflow
• Supports EMA and FDA guidance for assessing particles/droplets <10 μm
• Compatible with Next Generation Impactor (NGI) and Andersen Cascade Impactor (ACI)
• Flexible inlet design with three nosepiece sizes (5 mm, 7.5 mm, 10 mm)
• Compatible with Copley DUSA Tube Shaker (DTS 100i)
• Constructed from solvent‑resistant materials for reliable recovery and easy cleaning
• Precision‑engineered and serialised for traceability

KNI Technical Specifications
Dimensions (w x d x h): 178 mm x 73 mm x 73 mm
System contents:

• KNI collection tube
• Filter support cap
• 2x rinsing caps
• 3x nosepiece inlets (5 mm, 7.5 mm, 10 mm)

Air connector type: Quick Release
Materials: Solvent‑resistant materials for reliable recovery and easy cleaning
Regulatory: Supports assessment of mass fraction <10 μm in line with EMA and FDA guidance
