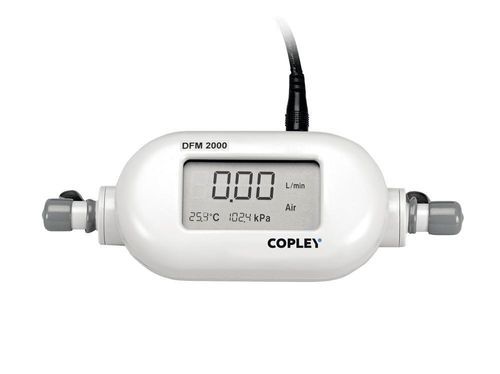

Thermal flow meter DFM 2000

massfor airportable

Overview
The Flow Meter DFM 2000 is a handheld thermal-mass flowmeter engineered for accurate inlet flow measurement in inhaler testing systems. It delivers both volumetric and standard calculation modes and integrates temperature and pressure sensors for corrected volumetric flow.

Product summary

• Accurate flow-rate measurement for inhaler testing applications
• Volumetric mode: calculates volumetric flow using live temperature and pressure (in-built T & P sensors)
• Standard mode: calculates flow based on preset temperature and pressure conditions
• Portable, hand-held unit; can be used in-line with supplied inlet filter for non-pharmacopoeial methods

DFM 2000 - Key specifications
Operation principle: Hot-wire (thermal mass) flow principle
Flow rate range: 0–200 L/min
Resolution: 0.01 L/min (0–90 L/min); 0.1 L/min (90–200 L/min)
Accuracy: ±2% of reading
Volumetric flow calculation: via in-built temperature and pressure sensors
Inlet filter: required in unfiltered laboratory environments; in-line use supported for non-pharmacopoeial methods
Connectivity: interfaces to external devices such as BAC 100i and TPK 100i
Reporting: RS-232 output for flow rate and calibration data
Calibration: factory calibration only
Power source: universal mains input voltage

Features / Highlights

• Thermal-mass sensing for reliable mass-flow measurement
• Volumetric mode provides ambient-corrected volumetric flow
• Handheld and portable for flexible laboratory or test-rig use
• Integrated temperature and pressure sensors for on-the-fly corrections
• RS-232 interface for data logging of flow and calibration

Technical specifications

• Model designation: DFM 2000
• Operation principle: Hot-wire (thermal mass) mass flow
• Flow range: 0–200 L/min
• Resolution: 0.01 L/min (0–90 L/min); 0.1 L/min (90–200 L/min)
• Accuracy: ±2% of reading
• Volumetric calculation: via in-built temperature and pressure sensors
• Inlet filter: required in unfiltered laboratory environments; in-line use supported for non-pharmacopoeial methods
• Connectivity: interfaces to external devices (e.g. BAC 100i, TPK 100i)
• Reporting: RS-232 for flow rate and calibration data
• Calibration: factory calibration only
• Power source: universal mains input voltage
