Automatic coater Genie™ IG 200i

Overview

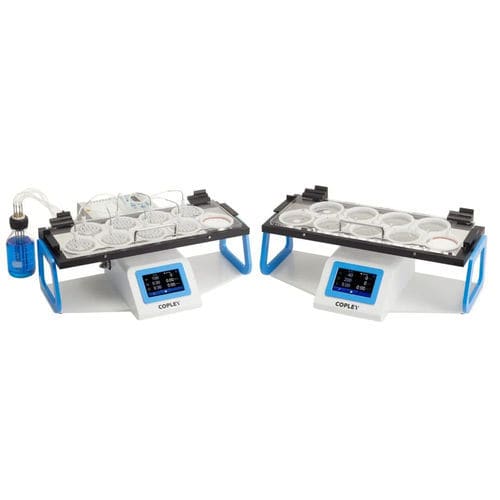

Combining the impaction surface coating capability of the Impactor Coater IC 200i with the drug recovery capabilities of the Gentle Rocker GR 200i, the Impactor Genie™ IG 200i is a 2-in-1 automated solution designed to speed and improve APSD impactor preparation and drug dissolution workflows. It provides quicker and more efficient preparation and drug recovery for both NGI and, for the first time, ACI collection plates, extending semi-automation capabilities of NGI workflows to ACI.

Key benefits

• 2-in-1 automated design: combines impaction surface coating and sample recovery in a single benchtop instrument.
• Faster workflows: transforms between modes in as little as 30 seconds with no tools required.
• Small footprint: space-saving design suitable for crowded benches.
• Compatibility: works with NGI collection cups and ACI collection plates to support multiple cascade impactor workflows.
• Enhanced productivity and reliability for cascade impactor preparation and dissolution workflows.
• Includes a Cover Stand for convenient storage of covers and attachments when not in use.

Product highlights

• Quick-release baskets for rapid changeover.
• Novel cell clamps; compatible with NGI collection cups.
• Compatible with ACI collection plates.
• 2-in-1 design saves benchtop space and extends semi-automation to additional impactor types.

Brochure & media
Brochure and promotional video materials are available for this product.

Caractéristiques / spécifications techniques

• Compatibility: NGI Collection Cups & ACI Collection Plates
• Connectivity: USB A, USB B, RS-232 (Gentle Rocker mode only)
• Dimensions (w x d x h): IG 200i: 590 x 320 x 250 mm; Pump: 150 x 220 x 130 mm
• Mode — Impactor Coater: Dispense Rate: 0 – 100 %
• Dispense and Reverse Cycle Time: 0 – 10 minutes
• Mode — Gentle Rocker: Agitation Speed: 10 – 60 RPM (±1 RPM)
• Run Time: Up to 100 hours or up to 60,000 revolutions
