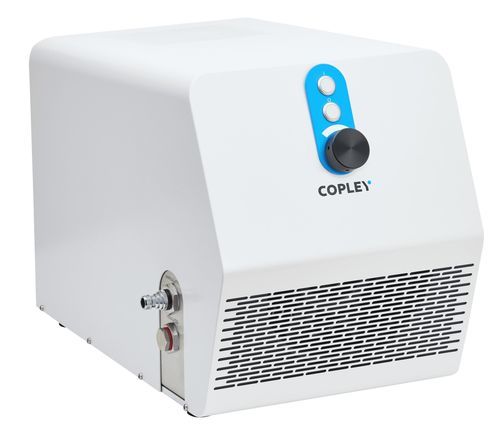

Rotary vane vacuum pump HCP7oil-freefor medical applicationsfor pharmaceutical applications
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-free
- Applications
- for laboratory, for medical applications, for pharmaceutical applications
- Other characteristics
- compact, high-flow
- Ultimate vacuum
Min.: 0 mbar
(0 psi)Max.: 150 mbar
(2.18 psi)- Flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 833 l/min
(220.06 us gal/min)- Length
580 mm
(23 in)- Width
360 mm, 750 mm
(14.17 in, 29.53 in)- Height
400 mm
(15.75 in)
Description
Overview
An established oil-free rotary vane vacuum pump for high, sonic-flow-rate aerosol testing of dry powder inhalers (DPIs) and other inhalation devices. The HCP7 is also suitable for metered-dose inhalers (MDIs), nebulisers, atomiser devices (ADIs), nasal sprays, nasal aerosols and nasal powders. A single HCP7 delivers up to 416 L/min unrestricted flow and units can be paired for higher combined flow.
Key Features
Performance & Operation
The HCP7 provides a maximum unrestricted flow of 416 L/min for a single unit. For higher flow requirements — for example DPI testing under sonic flow conditions with the Next Generation Impactor (NGI) — a second HCP7 can be coupled to the primary pump to provide a combined unregulated flow up to 833 L/min. Appropriate hose fittings are supplied with HCP7 units to permit paired operation.
Applications
HCP7 Technical Specifications
Columns: "Parameter" — "HCP7 x 1" — "HCP7 x 2"
Type — Rotary vane — Rotary vane
Lubrication — Dry — Dry
Max. flow in L/min (unrestricted) — 416 — 833
Max. sonic flow through NGI — 80 — 100
Max. vacuum level — <15 kPa — <15 kPa
Applications — MDIs, DPIs, Nebulisers, ADIs, Nasal Sprays, Nasal Aerosols, Nasal Powders — DPIs
Dimensions (w x d x h) — 360 x 580 x 400 mm — 750 x 580 x 400 mm
Notes
The pump is oil-free and designed for low maintenance. Self-sealing compound carbon vanes adapt over the service life to maintain effective performance. Two HCP7 units may be coupled for higher unregulated flow rates; hose fittings for paired operation are included.
An established oil-free rotary vane vacuum pump for high, sonic-flow-rate aerosol testing of dry powder inhalers (DPIs) and other inhalation devices. The HCP7 is also suitable for metered-dose inhalers (MDIs), nebulisers, atomiser devices (ADIs), nasal sprays, nasal aerosols and nasal powders. A single HCP7 delivers up to 416 L/min unrestricted flow and units can be paired for higher combined flow.
Key Features
- Low maintenance
- Compact footprint for laboratory integration
- Oil-free operation suitable for pharmaceutical aerosol testing
- Left and right vacuum inlets to simplify system placement
- Self-sealing compound carbon vanes maintain effective performance over service life
Performance & Operation
The HCP7 provides a maximum unrestricted flow of 416 L/min for a single unit. For higher flow requirements — for example DPI testing under sonic flow conditions with the Next Generation Impactor (NGI) — a second HCP7 can be coupled to the primary pump to provide a combined unregulated flow up to 833 L/min. Appropriate hose fittings are supplied with HCP7 units to permit paired operation.
Applications
- Dry Powder Inhalers (DPIs)
- Metered Dose Inhalers (MDIs)
- Nebulisers
- Atomiser Devices (ADIs)
- Nasal Sprays
- Nasal Aerosols
- Nasal Powders
HCP7 Technical Specifications
Columns: "Parameter" — "HCP7 x 1" — "HCP7 x 2"
Type — Rotary vane — Rotary vane
Lubrication — Dry — Dry
Max. flow in L/min (unrestricted) — 416 — 833
Max. sonic flow through NGI — 80 — 100
Max. vacuum level — <15 kPa — <15 kPa
Applications — MDIs, DPIs, Nebulisers, ADIs, Nasal Sprays, Nasal Aerosols, Nasal Powders — DPIs
Dimensions (w x d x h) — 360 x 580 x 400 mm — 750 x 580 x 400 mm
Notes
The pump is oil-free and designed for low maintenance. Self-sealing compound carbon vanes adapt over the service life to maintain effective performance. Two HCP7 units may be coupled for higher unregulated flow rates; hose fittings for paired operation are included.
