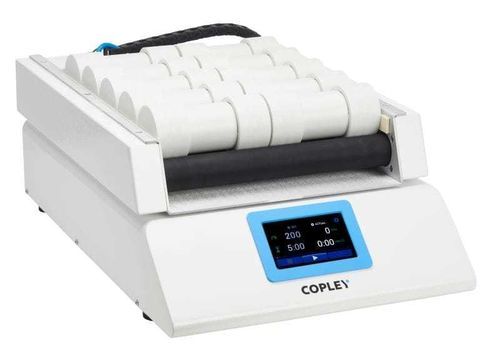

Roller laboratory shaker DTS 100i

reciprocatingdigitalvariable-speed

Overview
The DUSA Shaker™ DTS 100i automates internal rinsing of Dosage Unit Sampling Apparatus (DUSA) collection tubes for both metered-dose inhalers (MDIs) and dry powder inhalers (DPIs). It delivers precise agitation via an intuitive touchscreen and adjustable shaking speeds to enable fast, repeatable drug recovery for delivered dose uniformity testing. The system reduces manual handling time and the risk of variability or repetitive strain injury during sample preparation.

Key features

• Intuitive touchscreen user interface
• Adjustable shaking speed to accommodate different DUSA types and protocols
• Automated internal rinsing for MDI and DPI DUSA collection tubes
• Supports high-throughput workflows and consistent drug recovery
• Reduces out-of-specification risk by providing repeatable agitation
• Minimises manual handling and repetitive tasks to improve lab safety

Applications

• Delivered Dose Uniformity (DDU) testing for OINDPs requiring individual dose collection and drug recovery from DUSA tubes
• High-throughput analytical laboratories seeking operator-independent rinsing for dose recovery
• Laboratories aiming to reduce manual handling and potential repetitive strain injury during sample preparation

Technical specifications

• User interface: Touchscreen
• Capacity: DUSA for MDIs: 10; DUSA for DPIs: 10
• Rinsing action: Shake only; Roll only; Shake and Roll
• Shake speed range: 20 – 200 RPM
• Roller speed: Fixed at 11.4 RPM
• Run time: Up to 100 hours
• Connectivity: USB A, USB B, RS-232
• Dimensions (w x d x h): 410 x 626 x 227 mm
