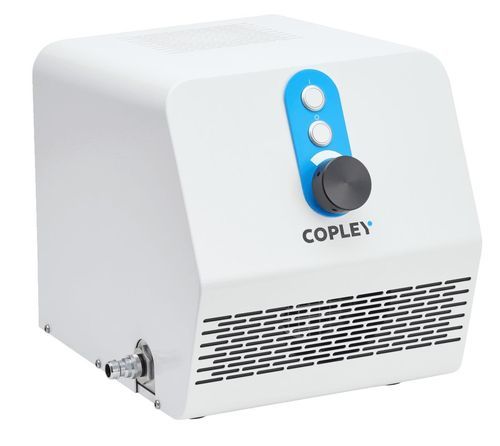

Rotary vane vacuum pump LCP7

oil-freelow-noise leveladjustable

Overview
Designed for optimal operation at low flow rates, the LCP7 low-capacity vacuum pump is intended for testing metered dose inhalers (MDIs), nebulisers, ADIs and nasal products at the nominal test flow of 28.3 L/min. Flow is adjusted from 0 to 133 L/min via a front-mounted control valve to support precise low-flow aerosol and dose testing.

Key features

• Low maintenance
• Small unit footprint
• Advanced sound insulation
• Oil-free (dry lubrication)
• Left and right vacuum inlets — choice of installation position within the system
• Self-sealing compound carbon vanes continuously adjust to maintain near 'as-new' efficiency over service life

Technical specifications
Type: Rotary vane
Lubrication: Dry (oil-free)
Max. flow (unrestricted): 133 L/min
Max. sonic flow through NGI: N/A
Max. vacuum level: <15 kPa
Applications: MDIs, Nebulisers, ADIs, Nasal Sprays, Nasal Aerosols, Nasal Powders
Dimensions (W x D x H): 300 x 360 x 300 mm

Applications / Use cases

• Delivered dose uniformity and aerosol testing for metered dose inhalers (MDIs)
• Nebuliser testing at low flow rates
• Adaptive use with ADIs and nasal products including sprays, aerosols and powders

Technical characteristics

• Model: LCP7
• Type: Rotary vane
• Lubrication: Dry (oil-free)
• Adjustable flow range: 0–133 L/min (control valve on front)
• Nominal test flow reference: 28.3 L/min (suitable for MDIs, nebulisers, ADIs, nasal products)
• Max. vacuum level: <15 kPa
• Max. unrestricted flow: 133 L/min
• Max. sonic flow through NGI: N/A
• Inlets: Left and right vacuum inlets
• Construction: Self-sealing compound carbon vanes for sustained efficiency
• Dimensions (W x D x H): 300 x 360 x 300 mm
